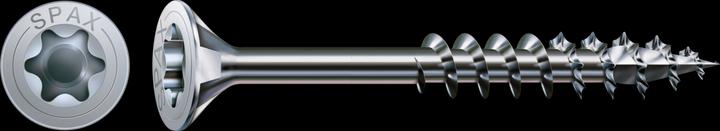

Spax Chipboard screws SK T20 5,0x90 mm
200 Screws per pieceMore than 10 items in stock at supplier
Length
Diameter
Product details

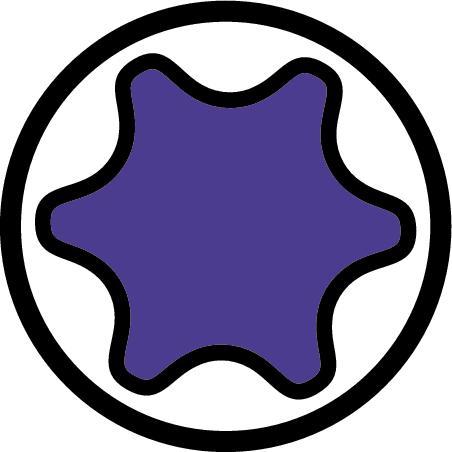

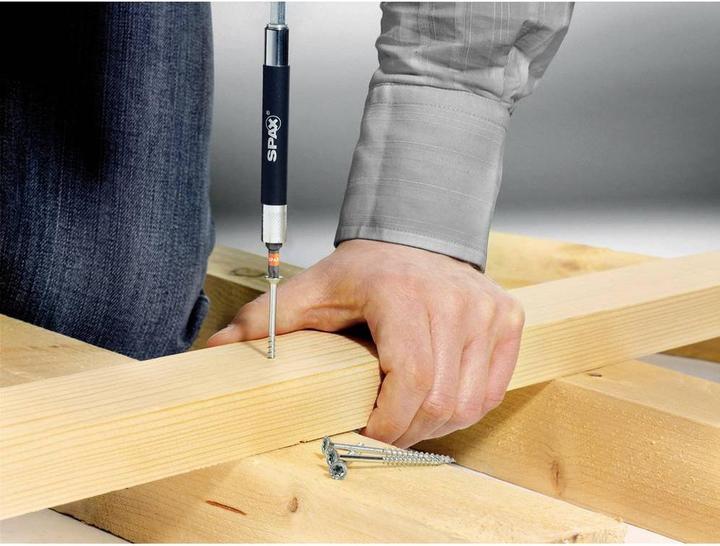

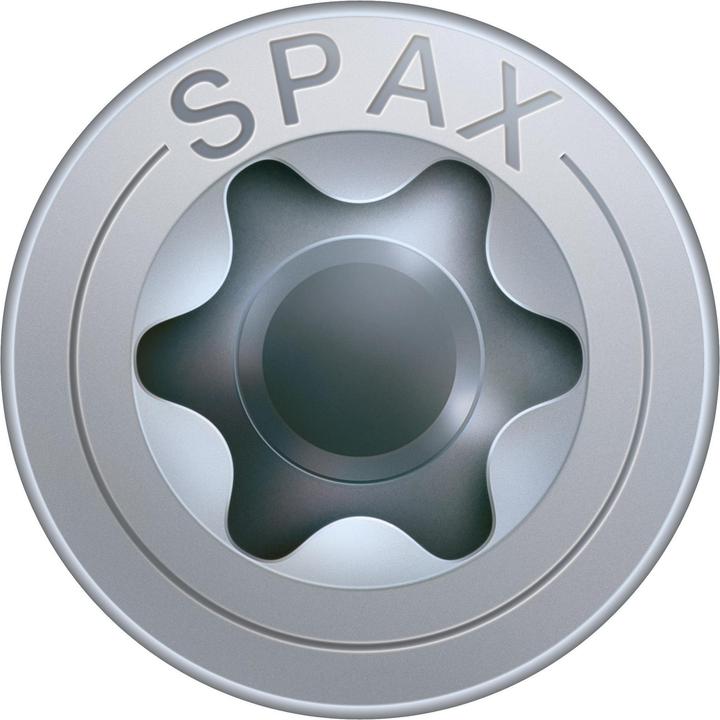

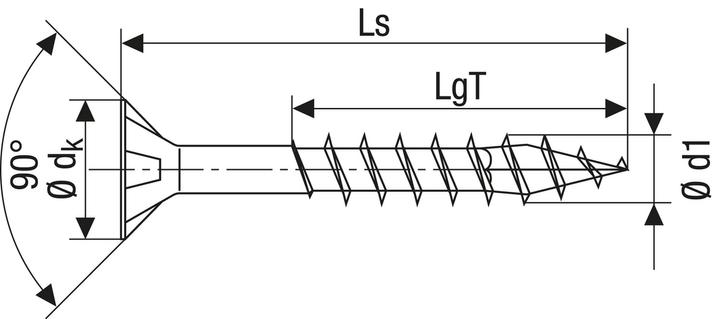

The SPAX-typical drive T-STAR plus is a so-called internal hexagon. This shape increases the contact surface of our T-STAR plus, allowing the T-STAR plus bits to fit perfectly into the screw head. The optimal power transfer from the screwdriver to the screw provided by T-STAR plus enables quick work, significantly more efficiently than with any other drive types. The countersunk head (or flat countersunk head) mills a recess into the wood with its polygonal underside ("pockets") and can therefore be sunk without the need for additional countersinking of the screw hole. The countersunk head sits flush with the surface. The screws with partial thread are excellent for fastening thin components such as wood-based panels, boards, or floorboards to thicker components like beams or timber. The short thread screws into the thick component, while the unthreaded shank remains in the attachment component. This creates maximum clamping pressure between the two. The unthreaded part should be at least as thick as the attachment component. The term 4CUT refers to the square shape of the screw tip. These edges displace the wood fibers during insertion and create space for the screw's core diameter. The spreading pressure exerted by the core in the wood is thus reduced, preventing splitting of the wood near the edges. The necessary torque of the cordless screwdriver is also reduced, as the core of the screw does not have to "squeeze" into the wood. With WIROX, SPAX has developed a coating that is far superior to galvanization in terms of corrosion protection. WIROX does not use chromium (VI), and the screws remain just as durable even after years in non-directly weather-exposed outdoor areas, and they are also environmentally friendly.
type of screw | Chipboard screw |
bolt diameter | 5 mm |
head shape | Countersunk head |
Screw length | 90 mm |
Size (D x L) | M5 x 90 |
Item number | 12265161 |
Manufacturer | Spax |
Category | Screws |
Manufacturer no. | 3337027 |
Release date | 22.8.2019 |
Sales rank in Category Screws | 301 of 18304 |
Colour | Silver |
Exact colour description | Slip-coated, wirox®-coated |
Metal type | Steel |
Material group | Metal |
Material | Galvanised steel wirox®-coated, Slip-coated |
surface finish | Slide coated, Wirox coated |
type of screw | Chipboard screw |

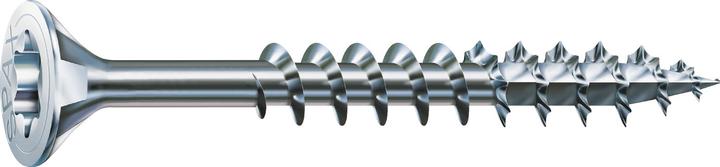

thread type | Partial thread |
head shape | Countersunk head |
impetus | Pin-torx |
Output size | T20 |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |

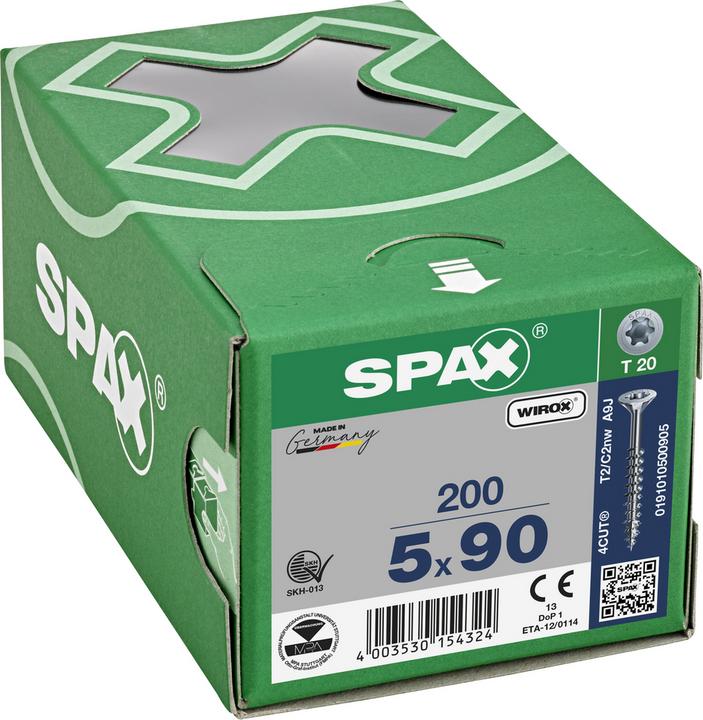

Scope of delivery | 200 piece, 4CUT, 5 x 90 mm, Partial thread, SENKKOPF, T-STAR plus T20, Universal screw, WIROX - 0191010500905 |
Items per sales unit | 200 Screws per piece |
Size (D x L) | M5 x 90 |
bolt diameter | 5 mm |
Screw length | 90 mm |
thread length | 61 mm |
