Product details

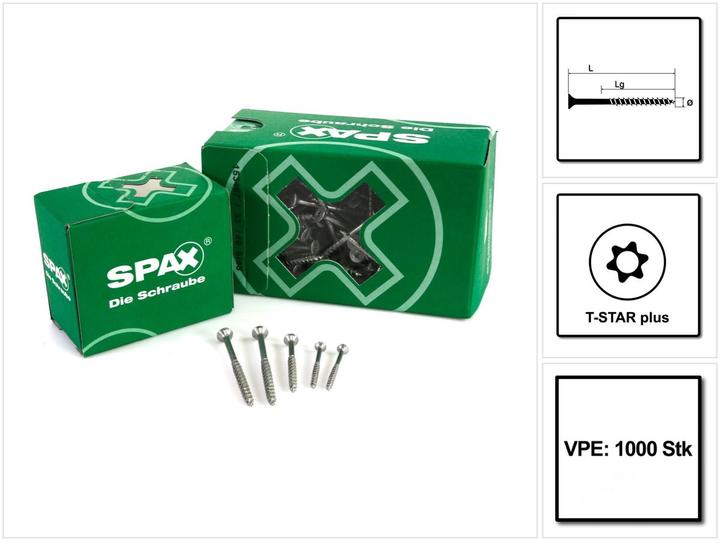

Delivery contents:

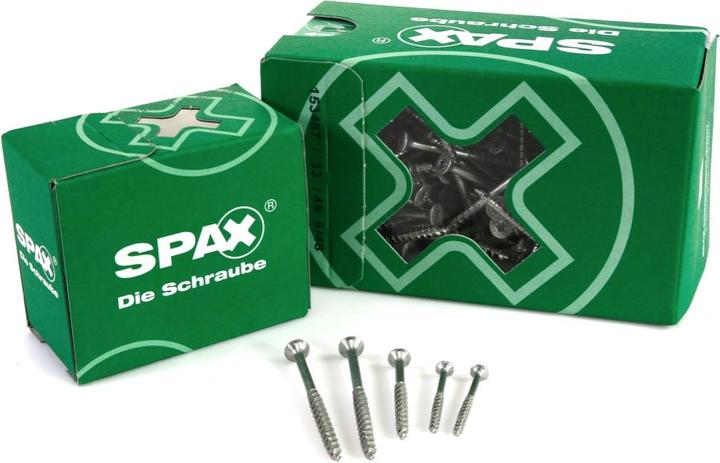

- 1000x SPAX universal screw 4.0 x 30 mm
Product description:

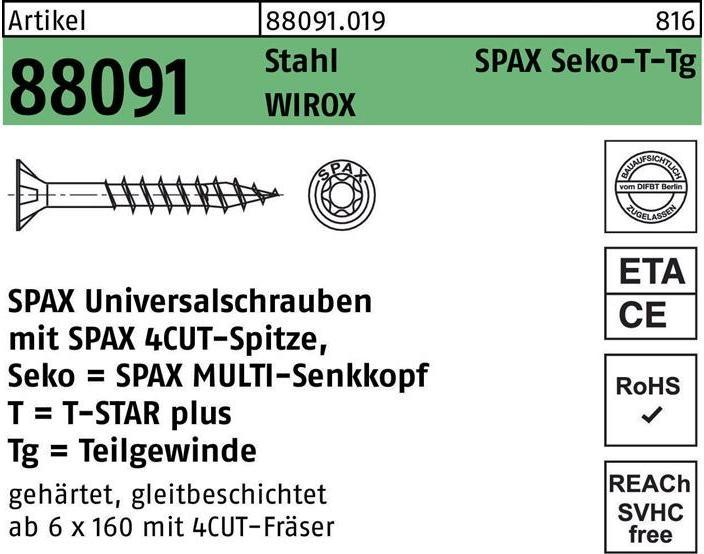

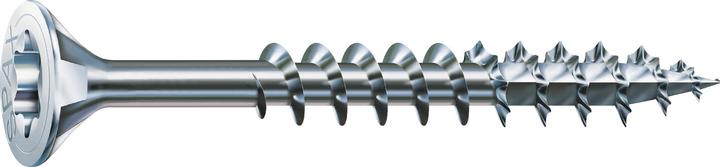

The SPAX Multi countersunk head universal screws with T-STAR plus drive provide users with greater flexibility due to their universal applicability in various materials such as wood, plastic, or metal sheets. The multi-head design with recessed pocket segments ensures a clean and flush sinking of the screw into wood, while the brake ribs effectively prevent over-torquing when working with metal fittings, creating a solid connection between the fitting and the component. The T-STAR plus (Torx) drive allows for better power transmission to the screw, longer service life, and faster insertion of the screw with improved fit on the workpiece. The integrated 4CUT tip enables screwing without pre-drilling (depending on the type of wood used), achieved by the square shape of the screw from the tip to the transition of the thread to the shaft. The 4CUT design reduces material splitting and significantly lowers the screwing torque. Additionally, the SPAX typical wave profile of the partial thread ensures easy and secure screwing. The new WIROX coating from SPAX offers 20 times higher corrosion protection and significantly higher surface hardness compared to conventional plain galvanization of screws, greatly expanding the potential applications in outdoor areas. The familiar 100% "Made in Germany" quality of SPAX screws is certified through a rigorous testing process by TÜV with proof of origin, providing a high level of safety and continuity.
Technical data:
Finish: WIROX
Head shape: Countersunk head
Thread type: Partial thread

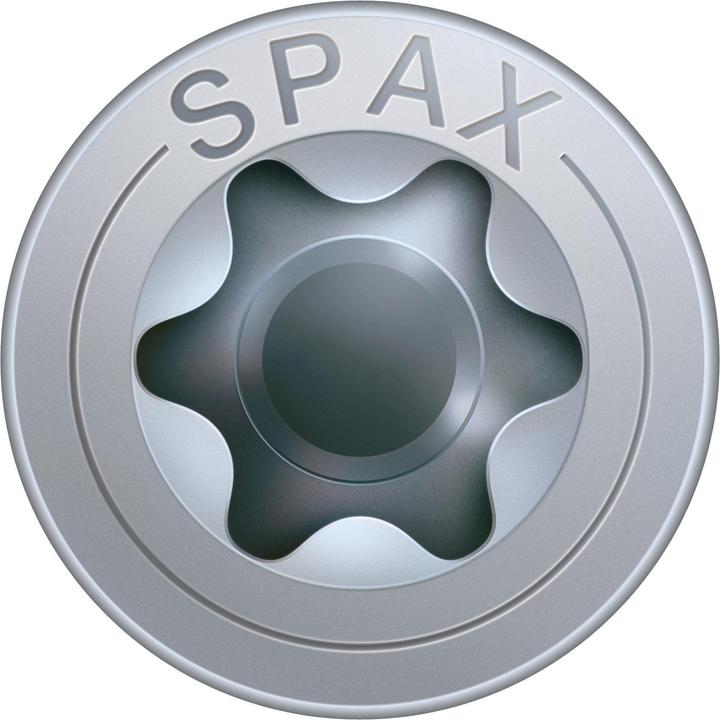

Drive type: T-STAR plus
Blade size: Torx 10-30 (see table).
type of screw | Chipboard screw |
bolt diameter | 4 mm |
head shape | Countersunk head |
Screw length | 30 mm |
Version | Unique specimen |
Size (D x L) | M4 x 30 |
Item number | 12265241 |
Colour | Silver |
Exact colour description | Slip-coated, wirox®-coated |
Metal type | Steel |
Material group | Metal |
Material | Galvanised steel wirox®-coated, Slip-coated |
surface finish | Slide coated, Wirox coated |
type of screw | Chipboard screw |
Version | Unique specimen |
thread type | Partial thread |
head shape | Countersunk head |
impetus | Pin-torx |
Output size | T20 |
Suitable for | Wood |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |

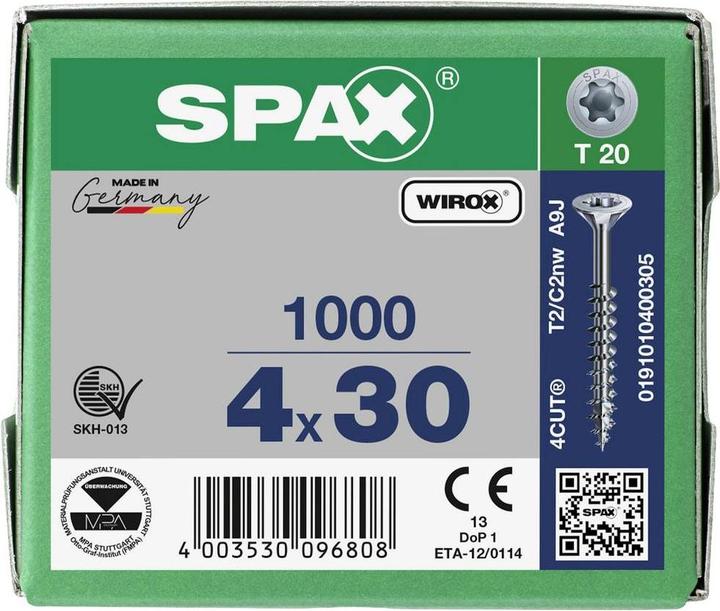

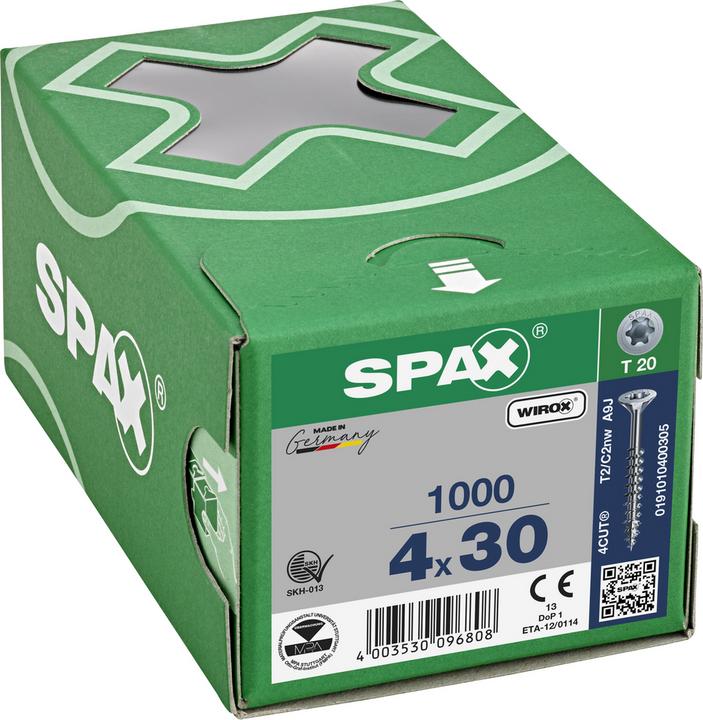

Scope of delivery | 1000 pieces, 4 x 30 mm, 4CUT, Partial thread, SENKKOPF, T-STAR plus T20, Universal screw, WIROX - 0191010400305 |
Items per sales unit | 1000 Screws per piece |
Size (D x L) | M4 x 30 |
bolt diameter | 4 mm |
Screw length | 30 mm |
thread length | 18 mm |
Length | 16.90 cm |
Width | 9.90 cm |
Height | 8.20 cm |
Weight | 1.76 kg |
