Spax Chipboard screws

1000 Screws per piece
CHF0.04/1pcs.
Delivered between Thu, 15.5. and Fri, 16.5.
More than 10 items in stock at supplier

Diameter

Length

Product details

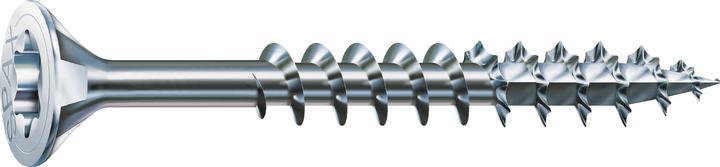

The SPAX typical drive T-STAR plus is a so-called internal hexagon. This shape increases the contact surface of our T-STAR plus, allowing the T-STAR plus bits to fit optimally in the screw head. The best possible power transfer from the screwdriver to the screw through T-STAR plus enables quick work, significantly more efficiently than with any other drives. The countersunk head (or flat countersunk head) carves a recess into the wood with its polygonal underside ("pockets") and can therefore be sunk without additional countersinking of the screw hole. The countersunk head sits flush with the surface. The screws with partial thread are excellent for fastening thin components such as wood-based panels, boards, or floorboards to thicker components like beams or posts. The short thread screws into the thick component, while the unthreaded shaft remains in the attachment part. This creates maximum clamping pressure between the two. The unthreaded part should be at least as thick as the attachment part. The S-tip is characterized by the fact that the thread extends into the front flanks. When you position the screw and start the cordless screwdriver, this thread immediately grips the wood and pulls the screw in effortlessly. This allows for quick work without the workpiece being scratched by the slipping screw tips. With WIROX, SPAX has developed a coating that is far superior to galvanization in terms of corrosion protection. WIROX does not use chromium (VI), and the screws remain just as load-bearing after years in non-directly weathered outdoor areas, and they are also environmentally friendly. WIROX screws are the first choice for all open structures without direct weather exposure, such as carports or pergolas; for direct weather exposure, such as on terraces, we recommend our screws in stainless steel.

Key specifications

type of screw
Chipboard screw
bolt diameter
3 mm
head shape
Countersunk head
Screw length
40 mm
Version
Unique specimen
Size (D x L)
M3 x 40
Item number
15880586

General information

Manufacturer
Spax
Category
Screws
Manufacturer no.
191010300405
Release date
24.5.2021

Colour

Colour
Silver
Exact colour description
Slip-coatedwirox®-coated

Material

Metal type
Steel
Material group
Metal
Material
Galvanised steel wirox®-coatedSlip-coated
surface finish
Slide coatedWirox coated

Screw Properties

type of screw
Chipboard screw
Version
Unique specimen
thread type
Partial thread
head shape
Countersunk head
impetus
T-section
Output size
T10
Quality class
Strength class 8.8

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery

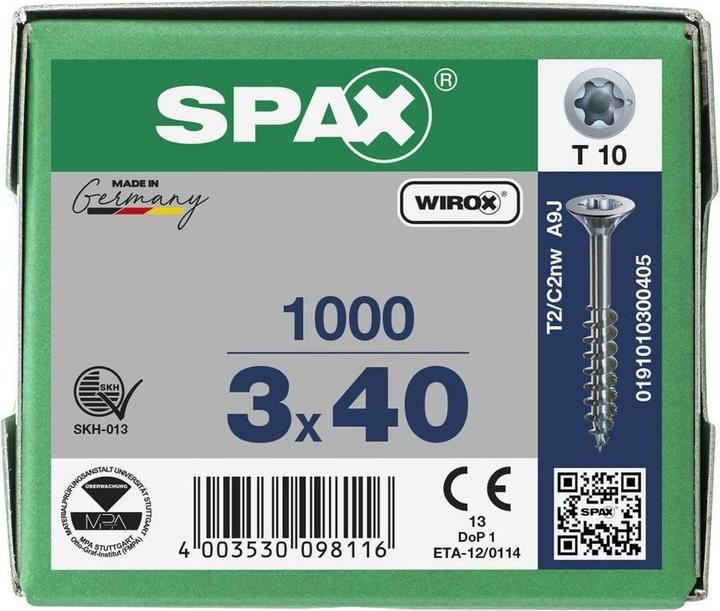

1000 pieces3 x 40 mmPartial threadS-tipSENKKOPFT-STAR plus T10Universal screwWIROX - 0191010300405
Items per sales unit
1000 Screws per piece

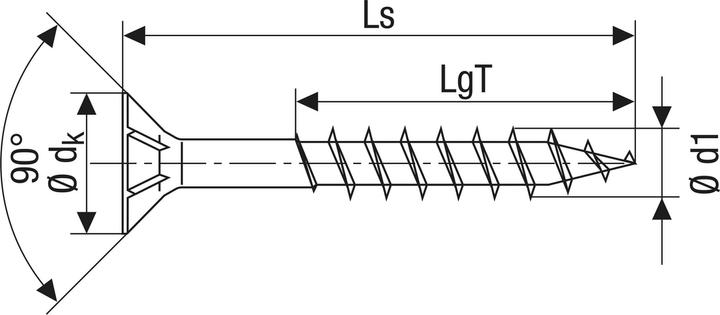

Product dimensions

Size (D x L)
M3 x 40
bolt diameter
3 mm
Screw length
40 mm
thread length
23 mm

Package dimensions

Length
21 cm
Width
9.90 cm
Height
7.80 cm
Weight
1.37 kg
