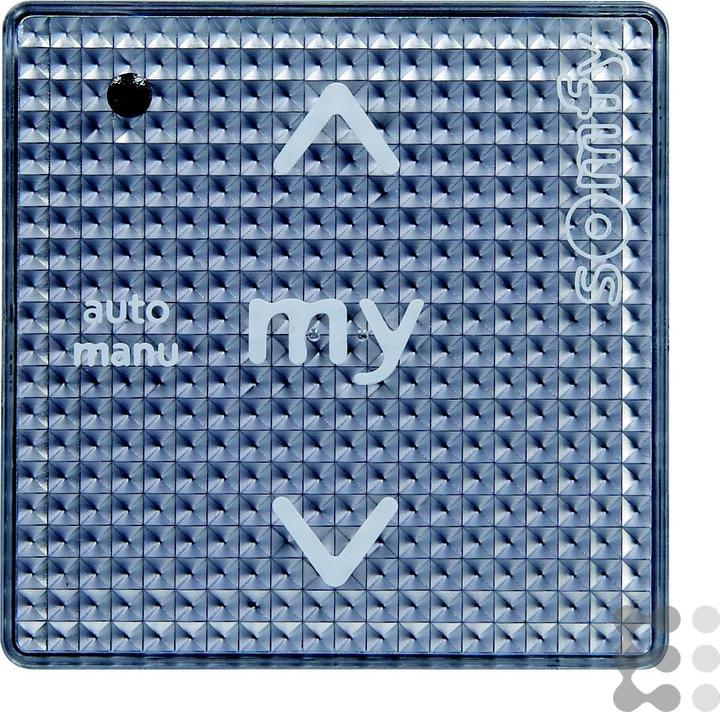

somfy Engine control unit Smoove Uno IB+Silver 1811204

For roller shutters, screens, Venetian blinds, and windows. For individual control of a 230 drive via ring line or locally via sensitive buttons. Local setting of an intermediate position and user ergonomics. Easy operation thanks to ergonomic design: sensitive technology. Quick commissioning in combination with TouchBuco, animeo BuildingController, or control devices such as Chronis Smoove IB and Soliris Smoove IB. Space-saving: motor control unit and control point combined in one device. Can be mounted in a flush-mounted box or cable duct. Design compatible with 50x50 switch programs from various manufacturers. Priority management between local and central commands via different operating modes, adjustable via animeo Building Controller. Wake-up time of electric drives adjustable via animeo Building Controller - sun automation and central drive commands. Time automation can be turned on or off. Adjustable run and reverse time per drive: only minimal dark phases for room users. Adjustable Venetian blind tilting angle: energy savings and increased light comfort. Delivery includes: motor control unit without frame. Operating voltage: 230 AC. Output voltage: 230 AC. Output current: 3.15. Operating temperature: -10 degrees C to 45 degrees C. Protection class: IP20. Protection type: II. Dimensions WxHxD: 50 x 50 x 41 mm. The motor control unit is the successor to: CD8010, CD8000, CD8000 8010 pro, Centralis Uno IB, Centralis Uno IB VB, CD8500 8510. Technical inspection required in advance.
