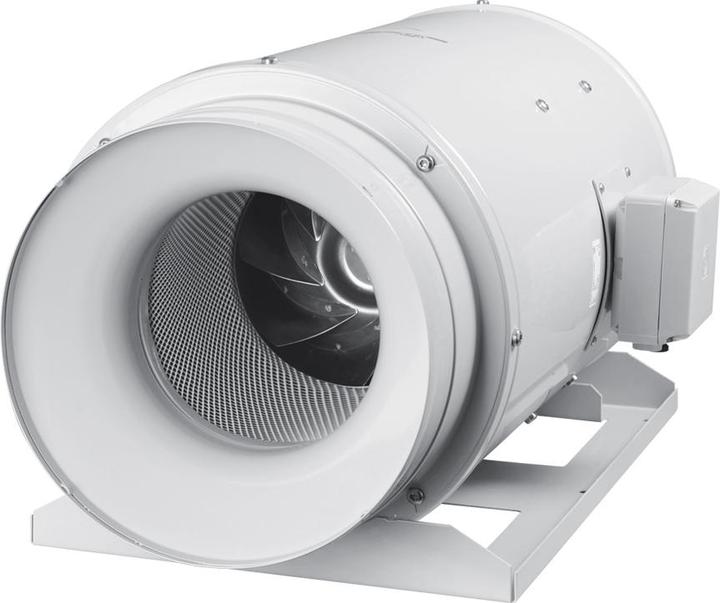

Soler&Palau Tube Fan Type TD 800/200 - SILENT

The S&P TD-800/200 Silent is ideal for rooms with a lighting intensity of up to 1200 watts. This sound-insulated duct fan operates extremely quietly and, thanks to its internal sound absorption, is one of the quietest fans of its kind in the world.

S&P, one of the leading international manufacturers of fans, presents the quietest duct fans in their class. This marks a new chapter in the development and manufacturing of duct fans. As a result, the TD Silent is up to 12 dB(A) quieter than any comparable product. The sound waves generated inside the TD Silent are channeled through the specially perforated inner shell and absorbed by the sound-dampening filling.

S&P Silent fans should not be dimmed.

Speed control is only possible through a step transformer.

Cables are not included in the delivery.

Specifications

Housing made of high-quality ABS plastic

External terminal box. Cover with 360° rotating cable entry

Easily removable, speed-controllable motor unit

Integrated mounting console for easy installation on walls or ceilings

Speed: (2 stages) 2780/2480 RPM

Maximum power consumption: 70/60 W

Maximum current consumption: 0.30/0.26 A

Airflow: 880/700 m³/h

Sound pressure level: 19/18 dB(A)

Maximum conveying medium temperature: 40 °C.
