SKF Single action thrust ball bearings
Delivered the day after tomorrow
Only 1 item in stock at third-party supplier
Only 1 item in stock at third-party supplier
Supplied by
Product details

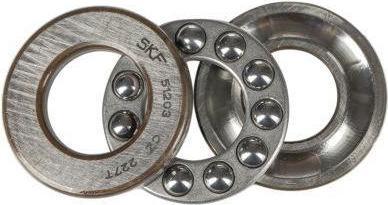

SKF axial deep groove ball bearing, single direction, 51203, 17 x 35 x 12
Bearing series 511, 512. Single direction axial deep groove ball bearings are suitable for accommodating axial loads in one direction and can support the shaft on one side, but must not be subjected to radial loads. They consist of a shaft washer, a housing washer, and a ball set held by a cage. Due to their design, the bearings are not self-retaining, allowing for separate installation of the bearing components, making it straightforward. Cage made of sheet steel. Main dimensions according to DIN 616:2000 / ISO 104:2002.
Ball bearing type | Deep groove ball bearing |
Outside diameter | 35 mm |
Internal diameter | 17 mm |
Width | 44 mm |
Item number | 9984378 |
Manufacturer | SKF |
Category | Ball bearings |
Manufacturer no. | 51203 7316577058546 |
Release date | 24.10.2018 |
Material group | Metal |
Material | Standard rolling bearing steel |
Ball bearing type | Deep groove ball bearing |
Load rating dyn. | 17.20 kN |
Load rating stat. | 30 kN |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Scope of delivery | Axial deep groove ball bearing 51203 ID 17mm OD 35mm W.12mm SKF |
Outside diameter | 35 mm |
Internal diameter | 17 mm |
Width | 44 mm |
Weight | 53 g |
Specifications may include unverified machine translations.
