SKF Self-aligning ball bearings
5 pieces in stock at supplier
Product details

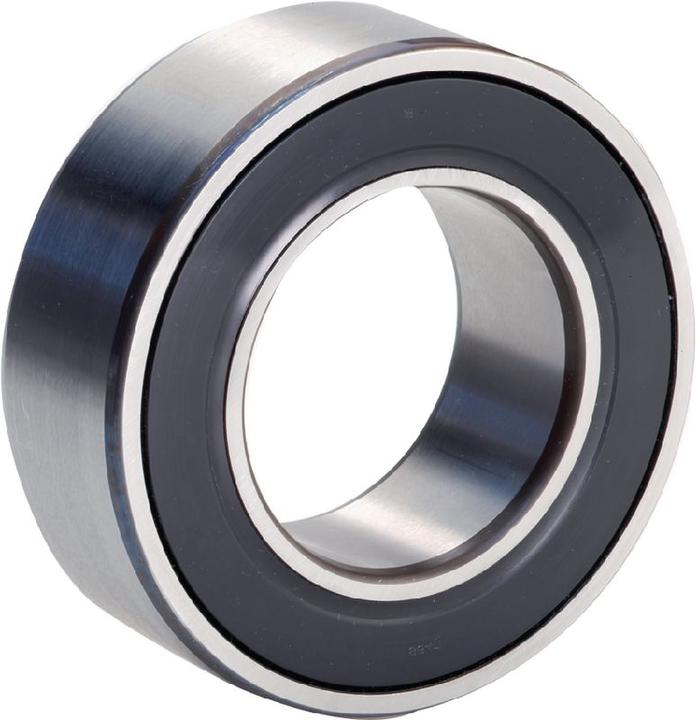

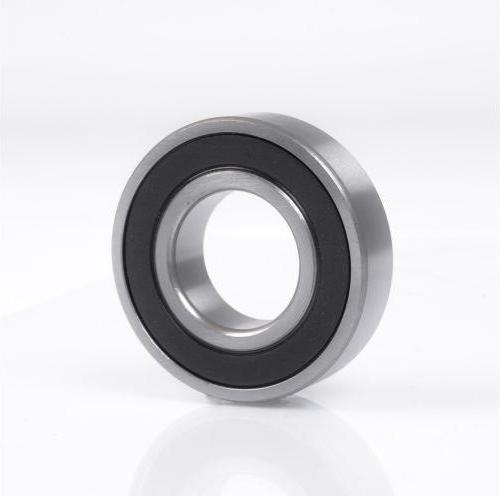

SKF self-aligning ball bearings 2RS with contact seals on both sides, 2205 E-2RS1TN9 25x 52x18
Bearing series 22

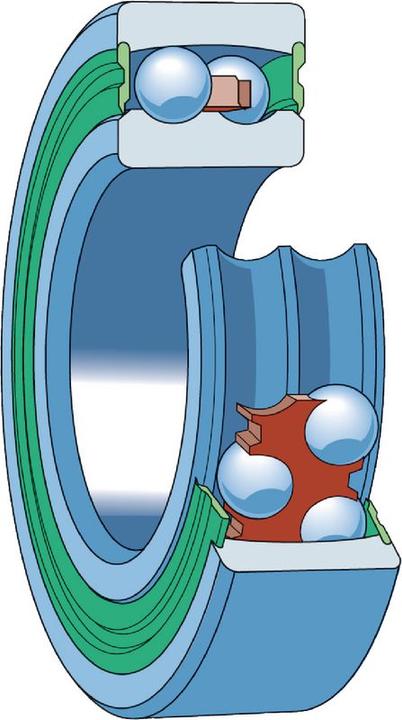

Version with cylindrical and tapered bore. Self-aligning ball bearings have two rows of balls and a common concave sphered raceway in the outer ring. They are moveable angularly and insensitive to angular misalignments of the shaft relative to the housing. This makes them particularly suitable for bearing situations where large shaft deflections or alignment errors can be expected. Self-aligning ball bearings also have the lowest friction of any rolling-contact bearings, allowing them to run more quietly and cooler even at higher speeds.

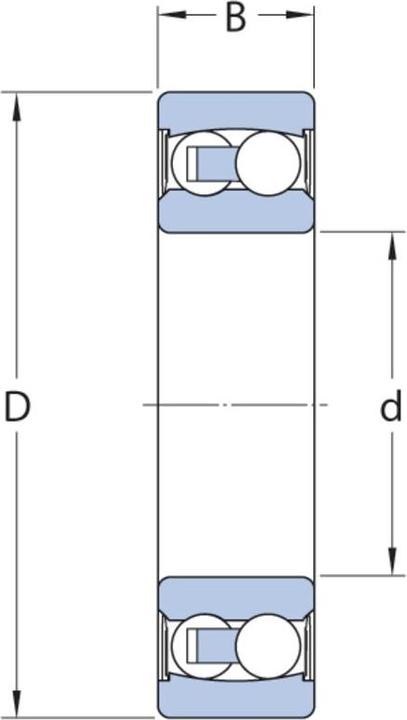

Main dimensions DIN 630:1993 / DIN 616:2000 / ISO 15:1998
Permissible misalignment: 1.5°
Suffixes:
E - Optimised internal construction
K - Tapered bore, taper 1:12
2RS1 - Steel sheet metal-armoured contact seals made of acrylonitrile butadiene rubber (NBR) on both sides
TN9 - Solid cage made of glass fibre-reinforced polyamide 66, ball-centred
C3 - Radial internal clearance greater than normal.
Ball bearing type | Self-aligning ball bearing |
Outside diameter | 52 mm |
Internal diameter | 25 mm |
Width | 18 mm |
Item number | 9985022 |
Manufacturer | SKF |
Category | Ball bearings |
Manufacturer No. | 2205 E-2RS1TN9 7316570025774 |
Release date | 24.10.2018 |
Material group | Metal |
Material | Polyamide cage, Standard rolling bearing steel |
Ball bearing type | Self-aligning ball bearing |
Load rating dyn. | 14.30 kN |
Load rating stat. | 4 kN |
Country of origin | Germany |
CO₂ emissions | 0.37 kg |
Climate contribution | CHF 0.11 |
Outside diameter | 52 mm |
Internal diameter | 25 mm |
Width | 18 mm |
Weight | 160 g |
