SKF Self-aligning ball bearings

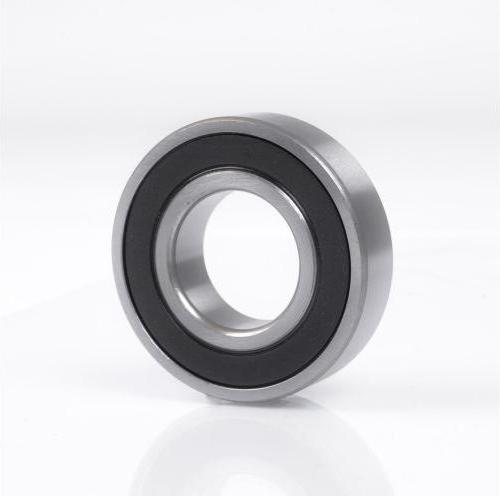

SKF self-aligning ball bearings 2RS with contact seals on both sides, 2207 E-2RS1TN9 35x72x23

Bearing series 22

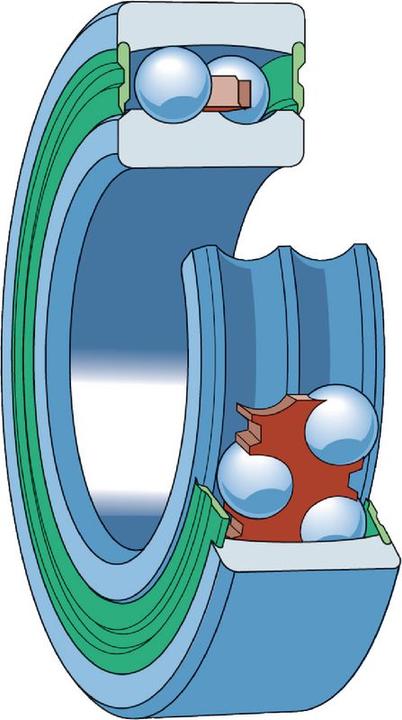

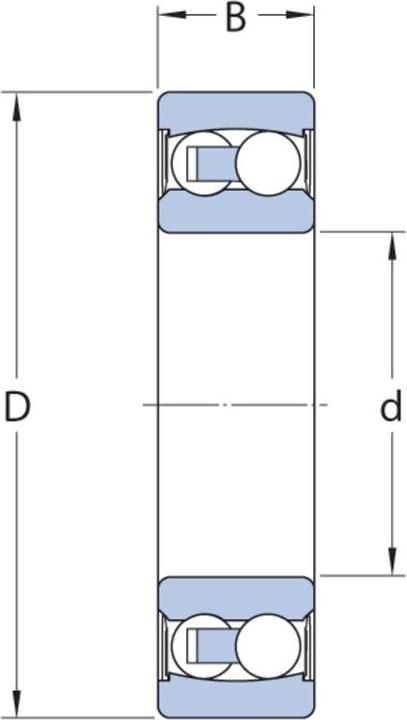

Design with cylindrical and tapered inner dimensions. Self-aligning ball bearings feature two rows of balls and a common concave spherical raceway in the outer ring. They are therefore angularly sensitive and insensible to angular misalignment errors of the shaft in relation to the housing. They are particularly suitable for bearing conditions where significant shaft deflections or alignment errors are expected. Self-aligning ball bearings also have the lowest friction of all rolling bearings, allowing them to operate somewhat quieter and cooler even at higher speeds. Main dimensions DIN 630:1993 / DIN 616:2000 / ISO 15:1998

Permissible misalignment: 1.5°

Suffixes:
E - Optimized internal design
K - Tapered inner dimension, cone 1:12
2RS1 - Contact seals made of steel sheet with acrylonitrile-butadiene rubber (NBR) on both sides
TN9 - Solid cage made of glass fiber reinforced polyamide 66, ball-centered
C3 - Radial internal dimension larger than normal.
