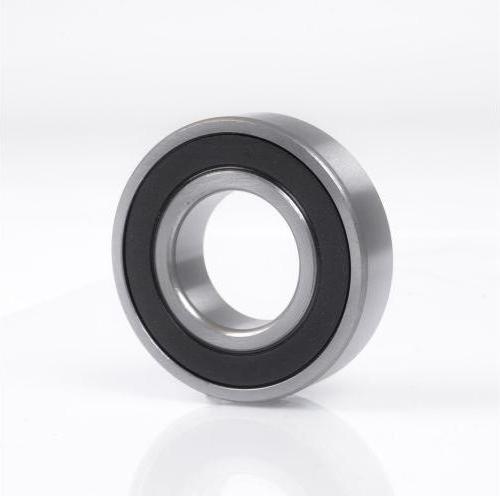

SKF Self-aligning ball bearing 2209 E-2RS1TN9 Inner Ø 45 mm Outer Ø 85 mm Width23 mm

SKF self-aligning ball bearings 2RS with contact seals on both sides, 2209 E-2RS1TN9 45x 85x23

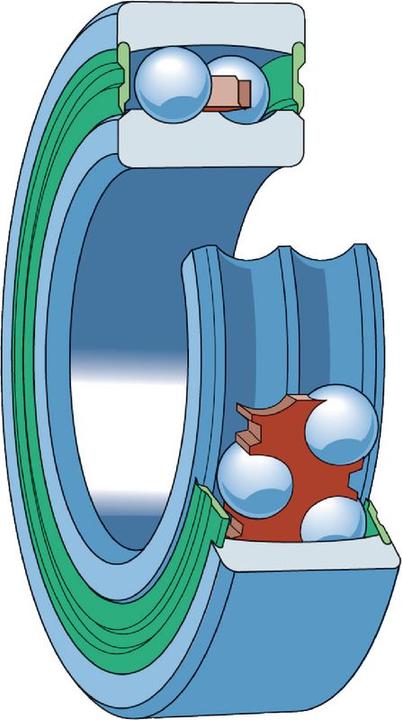

Bearing series 22. Version with cylindrical and tapered bore. Self-aligning ball bearings have two rows of balls and a common concave sphered raceway in the outer ring. They are consequently movable angularly and insensitive to angular misalignments of the shaft relative to the housing. They are therefore particularly suitable for bearing situations in which large shaft deflections or alignment errors can be expected. Self-aligning ball bearings also have the lowest friction of any rolling-contact bearings. This allows them to run somewhat more quietly and cooler even at higher speeds.

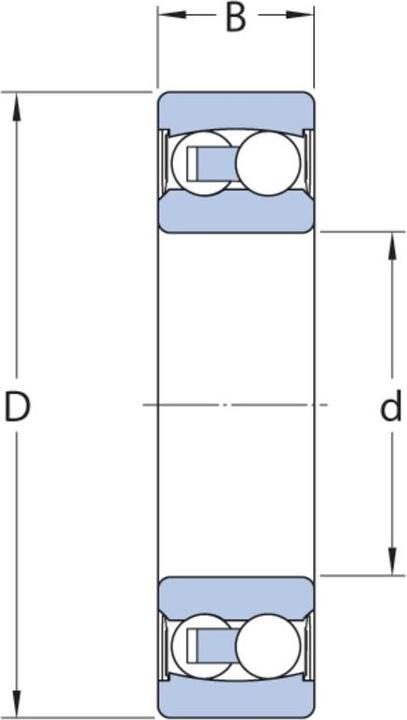

Main dimensions DIN 630:1993 / DIN 616:2000 / ISO 15:1998

Permissible misalignment: 1.5°

Suffixes:
E Optimised internal construction
K Tapered bore, taper 1:12
2RS1 Steel sheet metal-armoured contact seals made of acrylonitrile butadiene rubber (NBR) on both sides
TN9 Solid cage made of glass fibre-reinforced polyamide 66, ball-centred
C3 Radial internal clearance greater than normal.
