SKF Deep groove ball bearings
More than 10 pieces in stock at third-party supplier
Product details
SKF Singlerowdeepgro.ball bearing 2RS with contact seals on both sides, 61902-2RS1 15x 28x 7
Series 60, 62, 63, 618, 619

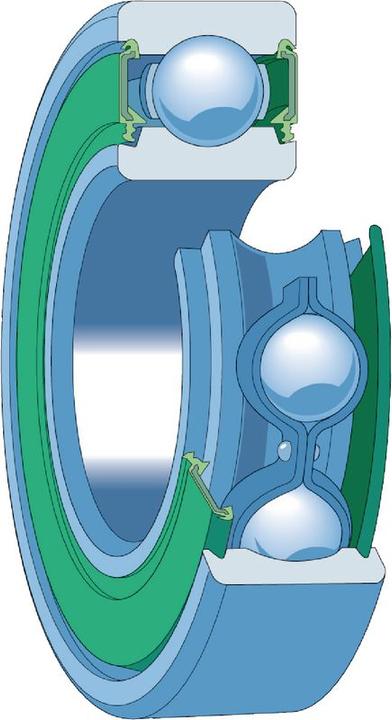

Single row deep groove ball bearings (fig) are particularly versatile. They are simple in design, non-separable, suitable for high and even very high speeds and are robust in operation, requiring little maintenance. Deep raceway grooves and the close conformity between the raceway grooves and the balls enable deep groove ball bearings to accommodate axial loads in both directions, in addition to radial loads, even at high speeds.
Pressed ribbon-type steel cage, ball centred.
Boundary dimensions DIN 625-1:1989 / DIN 616:2000 / ISO 15:1998
Supplementary designations:
2RS (2RS1/2RSH) Sheet steel reinforced contact seals of acrylonitrile-butadiene rubber (NBR) on both side
C3 Radial internal clearance greater than normal.
Ball bearing type | Deep groove ball bearing |
Width | 7 mm |
Internal diameter | 15 mm |
Outside diameter | 28 mm |
Item number | 9984279 |
Manufacturer | SKF |
Category | Ball bearings |
Manufacturer no. | 61902-2RS1 7316577121912 |
Release date | 24.10.2018 |
Colour | Silver |
Exact colour description | Silver |
Material group | Metal |
Material | Standard rolling bearing steel |
Ball bearing type | Deep groove ball bearing |
Load rating dyn. | 4.36 kN |
Load rating stat. | 2.24 kN |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1 piece Deep groove ball bearing 61902-2RS1 Inner Ø 15 mm Outer Ø 28 mm Width7 mm SKF |
Outside diameter | 28 mm |
Internal diameter | 15 mm |
Width | 7 mm |
Weight | 16 g |
