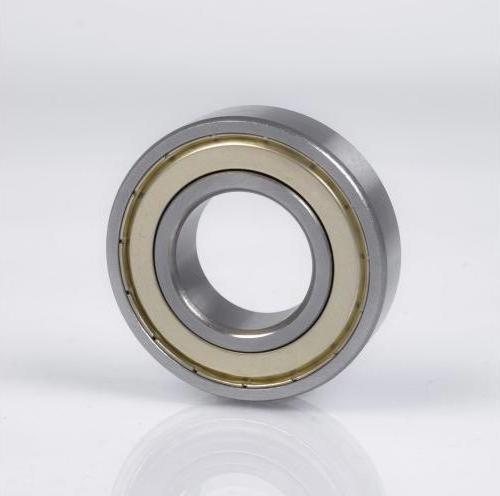

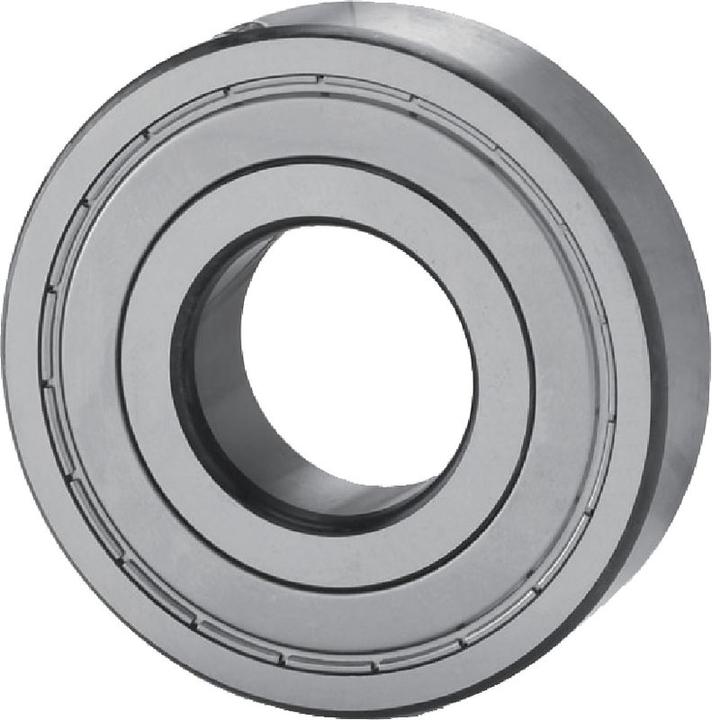

SKF single-row deep groove ball bearing 2Z with metal shields on both sides, 6201-2Z/C3, 12 x 32 x 10
Bearing series 60, 62, 63, 618, 619. Single-row deep groove ball bearings are particularly versatile. They have a simple design, are self-retaining, suitable for high to very high speeds, and are resistant to operation and maintenance. The deep raceways and the close fit between the raceways and balls allow for the accommodation of radial loads as well as axial loads in both directions, even at high speeds. Steel sheet cage, ball-guided. Main dimensions according to DIN 625-1:1989 / DIN 616:2000 / ISO 15:1998.
Additional markings:
2Z Metal shields made of steel sheet on both sides.
C3 Clearance greater than normal.

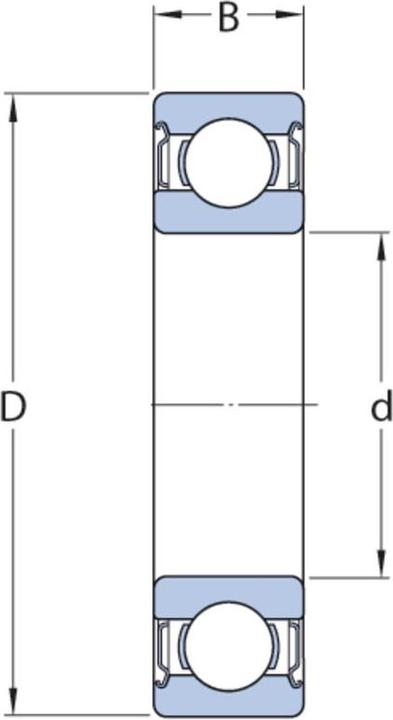

Ball bearing type | Deep groove ball bearing |
Outside diameter | 32 mm |
Internal diameter | 12 mm |
Width | 10 mm |
Item number | 9984211 |
Manufacturer | SKF |
Category | Ball bearings |
Manufacturer no. | 6201-2Z/C3 7316570484724 |
Release date | 24.10.2018 |
Sales rank in Category Ball bearings | 37 of 25951 |
Minimum order | 2 |
Material group | Metal |
Material | Standard rolling bearing steel |
Ball bearing type | Deep groove ball bearing |
Load rating dyn. | 7.28 kN |
Load rating stat. | 3.10 kN |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Outside diameter | 32 mm |
Internal diameter | 12 mm |
Width | 10 mm |
Weight | 38 g |
Length | 4.80 cm |
Width | 4.80 cm |
Height | 2.20 cm |
Weight | 40 g |
