SKF Angular contact ball bearing 7206 BECBP Inner Ø 30 mm Outer Ø 62 mm Width16 mm

SKF single-row angular contact ball bearing, open design, 7206 BECBP, 30 x 62 x 16

Bearing series 72

Angular contact ball bearings have raceways in the inner and outer rings that are offset from one another in the direction of the bearing axis. They are designed for bearing assemblies that must absorb combined loads, meaning loads acting simultaneously radially and axially. Single-row angular contact bearings can absorb only axial loads acting in a single direction. Under radial loads, a force acting in the axial direction is produced in the bearing and must be compensated by an opposite force. Bearings are consequently positioned against a second bearing.

Single-row angular contact bearings are available in two versions for different purposes:

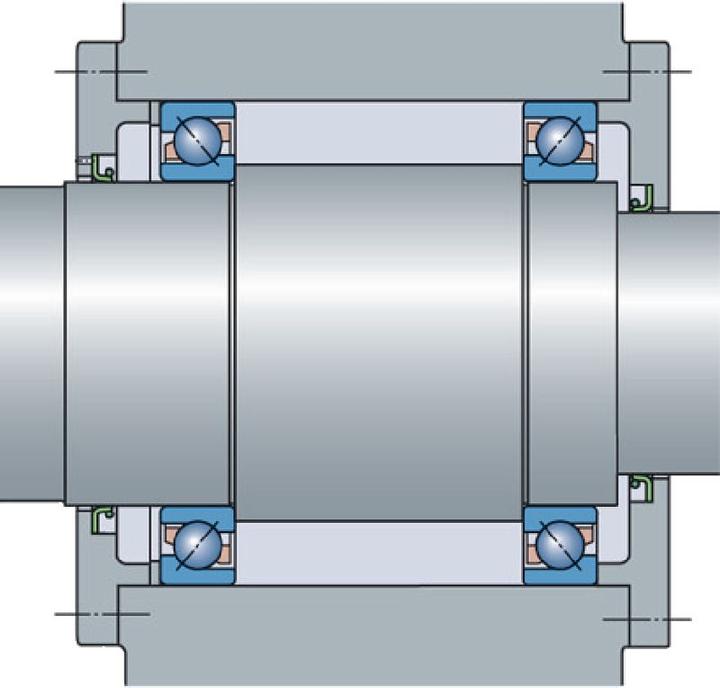

• Basic design bearings for bearing assemblies with single bearings (BEP)
• Bearings for universal matching (BECBP)

Window-type cage made of glass fibre-reinforced polyamide 66, ball-centred.

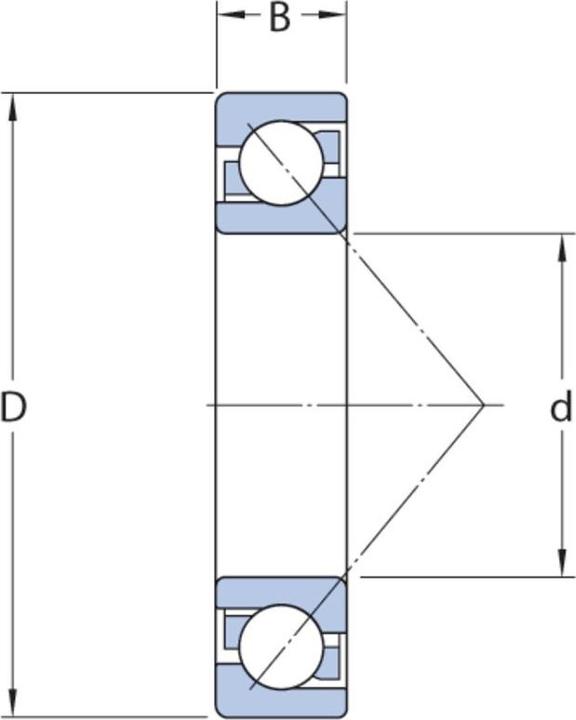

Main dimensions DIN 628-1:1993 / DIN 616:2000 / ISO 15:1998

Suffixes:
B - Contact angle 40°
E - Optimised internal construction

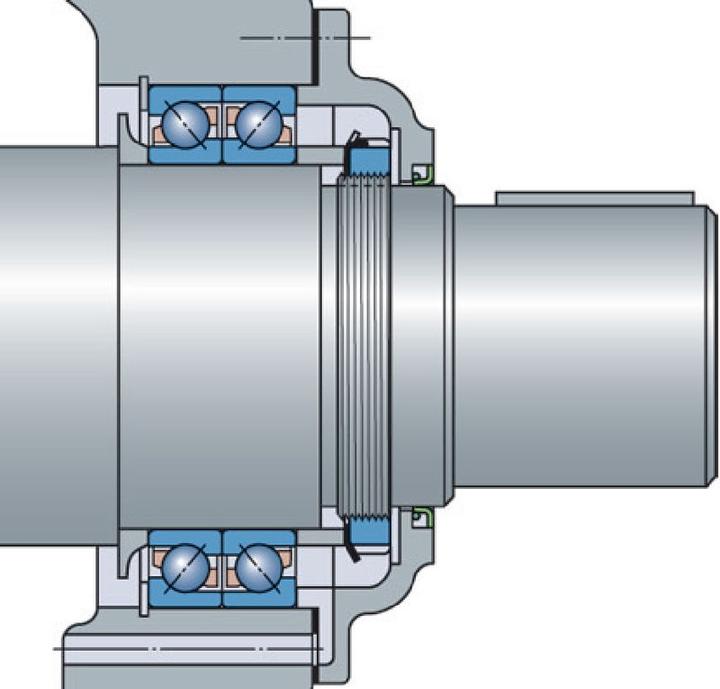

CB - Bearings for universal matching, normal axial clearance for back-to-back or face-to-face arrangement
P - Window-type cage made of glass fibre-reinforced polyamide 66, ball-centred.
