SKF 1207 ETN9
Minimum order 2More than 10 items in stock at third-party supplier
Product details

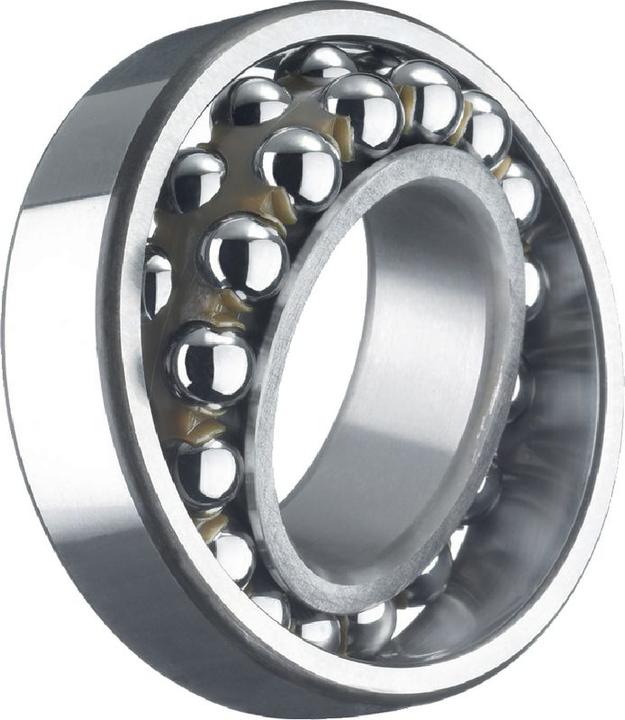

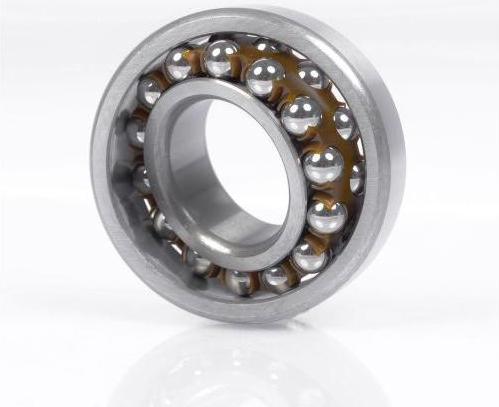

SKF self-aligning ball bearings - open design, 1207 ETN9 35 x 72 x 17

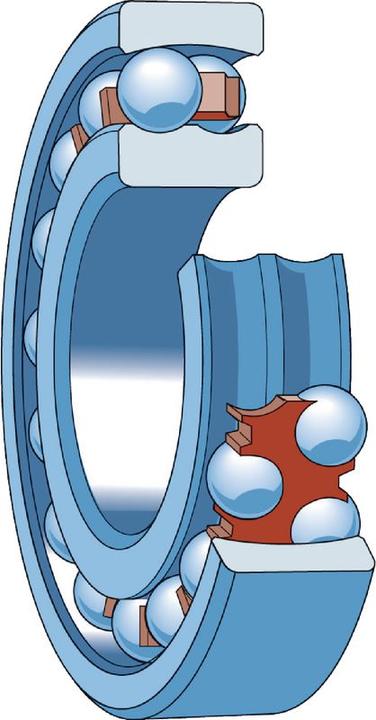

Bearing series 12, 22, 108, 126, 129. Self-aligning ball bearings have two rows of balls and a common concave sphered raceway in the outer ring. They are moveable angularly and insensitive to angular misalignments of the shaft relative to the housing. This makes them particularly suitable for bearing situations where large shaft deflections or alignment errors can be expected. Self-aligning ball bearings also have the lowest friction of any rolling-contact bearings, allowing them to run more quietly and cooler even at higher speeds.

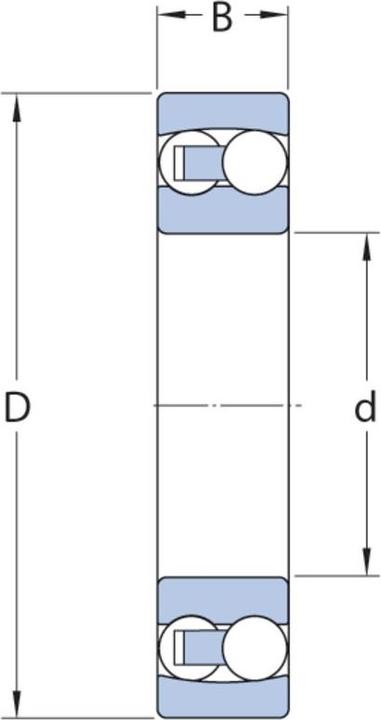

Main dimensions DIN 630:1993 / DIN 616:2000 / ISO 15:1998
Permissible misalignment:
Bearing series 108, 126, 129: 3°
Bearing series 12, 22: 2.5°
Suffixes:
E Optimised internal construction
K Tapered bore, taper 1:12
TN9 Cage made of glass fibre-reinforced polyamide 66, ball-centred
C3 Radial internal clearance greater than normal.
Ball bearing type | Self-aligning ball bearing |
Outside diameter | 72 mm |
Internal diameter | 35 mm |
Width | 17 mm |
Item number | 22105006 |
Manufacturer | SKF |
Category | Ball bearings |
Manufacturer no. | 10023124 |
Release date | 9.9.2022 |
Minimum order | 2 |
Minimum order | 2 |
Material group | Metal |
Material | Standard rolling bearing steel (100Cr6) |
Ball bearing type | Self-aligning ball bearing |
Load rating dyn. | 19 kN |
Load rating stat. | 6 kN |
Country of origin | Germany |
CO₂-Emission | |
Climate contribution |
Outside diameter | 72 mm |
Internal diameter | 35 mm |
Width | 17 mm |
Weight | 320 g |
