Simpson Sst Fitting connector

Log connectors, 1 pcs.
2Ratings
Delivered between Thu, 3.9. and Tue, 15.9.
5 pieces in stock at supplier
Free shipping starting at 50.–

Length6

Show all

Product details

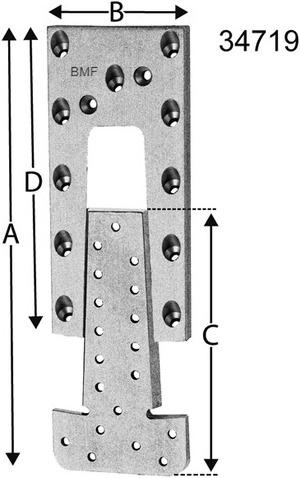

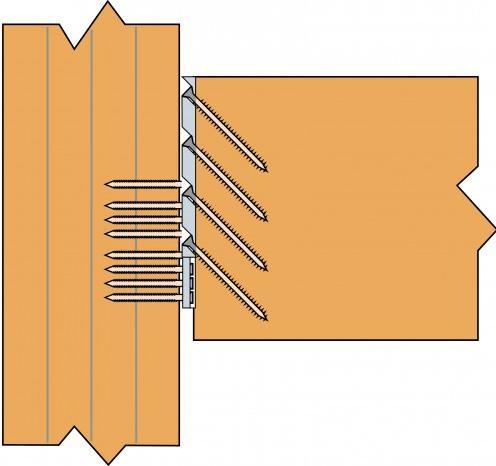

Connections with upward inclinations of up to 90° and angles from 15° to 165° can be executed. This is a two-part connector made of aluminum for visible wood connections that leave no processing marks. The ETB connector is suitable for both main beam to secondary beam connections and post to beam connections in glulam or solid softwood beams to accommodate loads in the insertion direction. Angled connections and upward-tilted connections are also possible. The simple hanging of the insertion plate onto the T-plate allows for precise and quick assembly. The ETB connectors are suitable for both main to secondary beam connections and post to secondary beam connections.

Key specifications

Exact colour description
blank
Material
Aluminium
Area of use
Outside
Length
130 mm
Width
60 mm

General information

Item number
15288285
Manufacturer
Simpson Sst
Category
Wood connectors
Manufacturer No.
ETB160-B M1880-8844
Release date
17.3.2021
External links
Manufacturer's site (de)

Colour

Colour
Silver
Exact colour description
blank

Material

Material group
Metal
Material
Aluminium

Wood connector properties

Connector type
Log connectors
borehole size
5 mm
Area of use
Outside
Round head screws diameter
4 mm
Countersunk screws diameter
5 mm

Origin

Country of origin
Denmark

Voluntary climate contribution

CO₂ emissions
0.5 kg
Climate contribution
CHF 0.11

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Length
130 mm
Width
60 mm
Height
166 mm
Thickness
6 mm
