Simpson Sst Connector

Angle connector, 1 pcs.
Save CHF3.30
Ratings
BrandMore from Simpson Sst
Delivered between Wed, 17.6. and Wed, 1.7.
More than 10 pieces in stock at supplier
Free shipping starting at 50.–

Width2

Product details

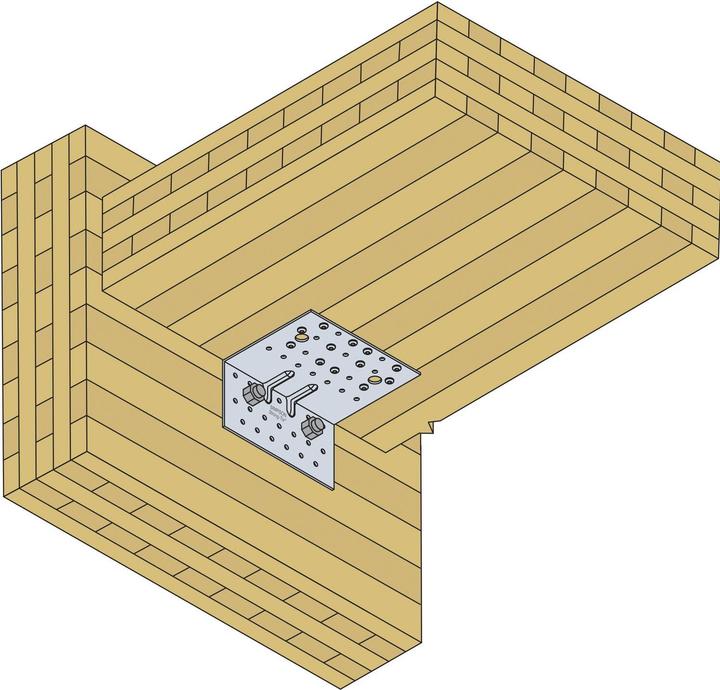

It is designed for connecting wooden elements to wood or concrete. It can accommodate both tensile and shear loads. By using different nail configurations, beams or columns can be connected. Additionally, laminated wood elements can be joined. The fiber direction of the top layer is crucial for determining the fastening distance. Steel quality: S 250 GD + Z 275 according to DIN EN 10346. Corrosion protection: 275 g/m² on both sides, which corresponds to a zinc layer thickness of about 20 μm.

Benefits include connections to wood or concrete/steel, customized nail patterns for anchoring beams or columns, high load-bearing capacities for tensile and shear loads, large 13 mm holes for 12 mm bolts, and additional holes for structural purposes. Supporting materials include wood, wood-based materials, concrete, and steel. The intended use of the AG angle connectors is for wood/wood or wood/concrete connections in load-bearing structures.

Key specifications

Exact colour description
Galvanized
Material
Steel
Area of use
Inside
Length
79 mm
Width
150 mm

General information

Item number
15061022
Manufacturer
Simpson Sst
Category
Wood connectors
Manufacturer No.
AG922 M1880-9999
Release date
12.3.2021

Colour

Colour
Silver
Exact colour description
Galvanized

Material

Material group
Metal
Material
Steel

Wood connector properties

Connector type
Angle connector
Surface finish
Galvanized
borehole size
5 mm
Area of use
Inside
Round head screws diameter
5 mm

Origin

Country of origin
France

Voluntary climate contribution

CO₂ emissions
0.37 kg
Climate contribution
CHF 0.11

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Length
79 mm
Width
150 mm
Height
121 mm
Thickness
2.50 mm
