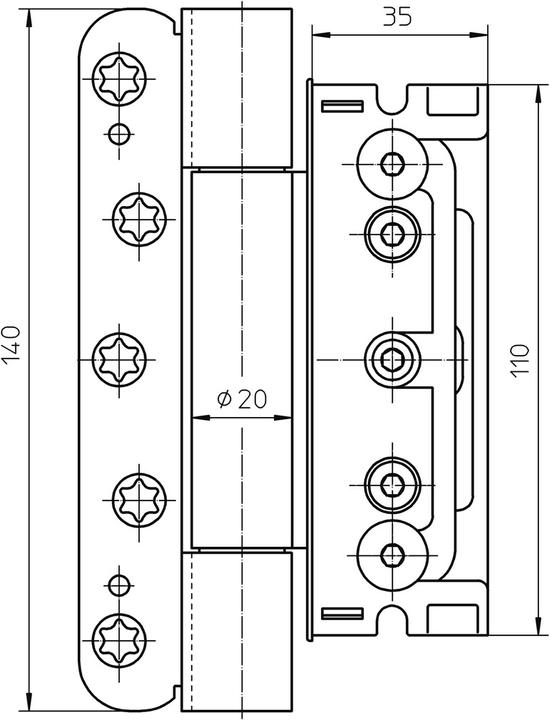

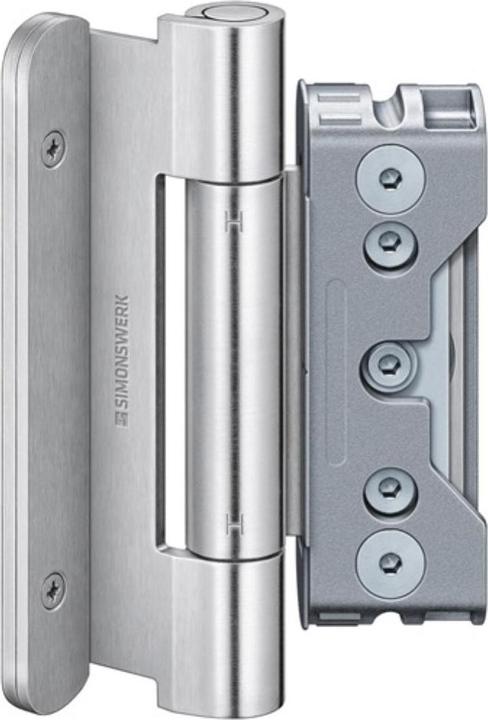

Simonswerk Entrance door hinges BAKA Protect 4010 3D and 3D FD

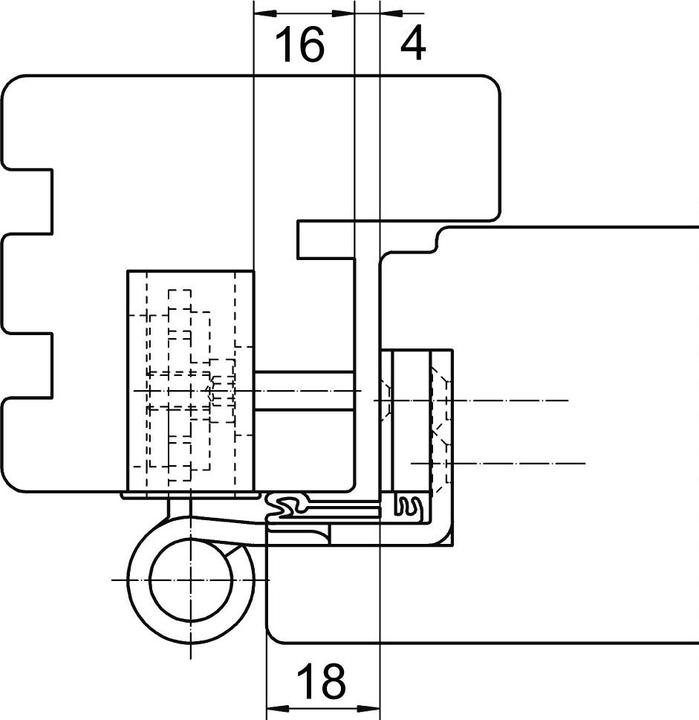

The BAKA Protect 4010 3D door hinge from Simonswerk is a high-quality solution for wooden front doors, offering reliable and durable functionality. This door hardware system is specifically designed for wooden front doors and features a concealed mounting element that is integrated into both the door leaf and the frame. With a maximum load capacity of up to 160 kg, the product is suitable for various door sizes and weights. The convenient eccentric adjustment allows for three-dimensional adjustment in height, side, and pressure, ensuring precise alignment and optimal closing mechanism. The use of galvanized steel provides high stability and longevity, while the maintenance-free sliding bearing technology minimizes upkeep. The system is supplied as a set of three hinges, with one hinge designated for height adjustment and two hinges for pressure adjustment. These features make the BAKA Protect 4010 3D an ideal choice for demanding applications in the field of door hardware.

• Three-dimensional adjustability: Height +/-3.0 mm, Side +/-3.0 mm, Pressure +/-3.0 mm
• Comfortable eccentric adjustment for easy modifications
• Maximum load capacity of 160 kg for high stability
• Maintenance-free sliding bearing technology for low maintenance effort
• Concealed mounting element for aesthetic integration.
