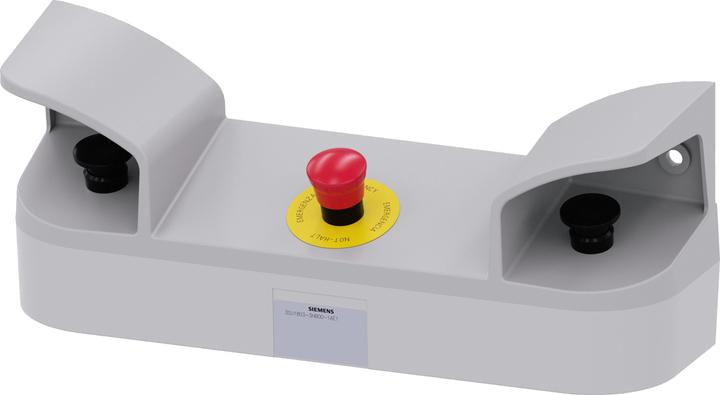

Siemens Two-hand control panel complete in housing, red

Two-hand control panel for command devices, 22 mm, round, housing material plastic, housing top gray, 3 drill holes for command stations, 8 additional breaking points for 22 mm command devices, 2 black mushroom push buttons 40 mm, 2x1S+1Ö, screw connection, 1 emergency stop red, 40 mm, 2Ö, screw connection, front mounting, with cable entries for metric screw connections.

The SIRIUS ACT two-hand control panel is designed for machines and systems with a higher potential for danger (e.g., for increased safety on presses, stamping machines) in accordance with EN 574. Under the brand name SIRIUS ACT, Siemens offers a unique portfolio of command and signaling devices with worldwide product approvals in three modern design series made of robust real metal and high-quality plastic.

The innovative snap-on concept simplifies assembly to the extent that only one hand and no special tools are required. For mounting, non-threaded holes are sufficient, as a 100% anti-twist protection is already integrated. Thanks to the consistently high degree of protection, the robust devices are industrially suitable and suitable for outdoor use. Even cleaning with a high-pressure jet is possible. Neither dust, oils, nor aggressive alkalis can disrupt reliable operation.

In addition to standard wiring, most devices can also be connected to the control system via PROFINET, AS-Interface, or IO-Link. This reduces your wiring effort, minimizes sources of error, and provides greater flexibility. The graphical online configurator conveniently supports the selection and ordering of individual devices, housings, and labels. Extensive documentation (e.g., manual, 3D data, connection diagram) is available.

Available versions: plastic/metal, empty housing/pre-equipped. SIRIUS ACT - Performance in Action for commanding and signaling. Easily assembled, simply strong, simply perfect.
