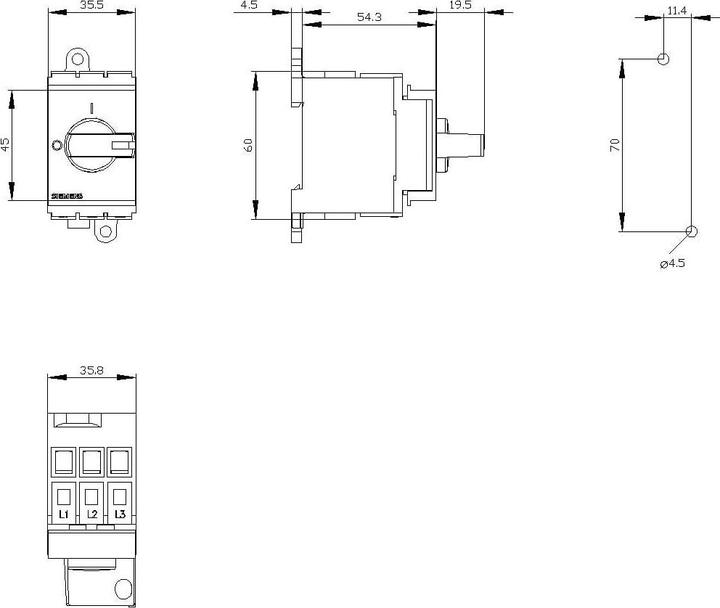

Siemens Switch-disconnector 3LD3, Iu 16 A Main switch 3-pole Rated operational power
Supplied by
Conrad CH
Free shipping starting at 50.–
Load disconnect switch 3LD3, Iu 16 A main switch, 3-pole, rated operational power at AC-23 A at 400V 7.5 kW, panel installation, base switch with rotary drive red/yellow. The main and emergency stop switch 3LD ensures safe disconnection of loads in a variety of environments. The application possibilities of the 3LD3 network disconnecting devices are diverse. After network disconnections, they ensure the safe isolation of the entire electrical equipment and can switch off three-phase motors as well as heating, ventilation, and air conditioning systems. The 3LD3 is also ideally suited for use in control or distribution cabinets, especially for applications in small machines such as saws, compressors, pumps, concrete mixers, drills, milling machines, and woodworking machines. The Siemens main and emergency stop switches 3LD are characterized primarily by: 1. Modular design, quick and easy assembly of auxiliary switches, N-PE terminal, or 4th pole. 2. Versatile applicability thanks to local approvals. 3. One mechanical size for five electrical sizes. 4. Usability for DC applications. 5. Mounting types: front mounting, mounting plate, DIN rail. 6. Optimal network disconnection from 16 A to 63 A through the lockable rotary drive.
Colour | Red |
Switch + button type | Switch disconnector |
Mounting type | Top-hat rail |
Width | 36 mm |
Item number | 21335961 |
Manufacturer | Siemens |
Category | Buttons + Switches |
Manufacturer no. | 3LD30300TK13 |
Release date | 28.6.2022 |
Sales rank in Category Buttons + Switches | 35 of 24307 |
Colour | Red |
Exact colour description | Red, Yellow |
Switch + button type | Switch disconnector |
Mounting type | Top-hat rail |
Number of poles | 3 x |
Nominal voltage | 690 V |
Nominal current | 16 A |
Max. Switching capacity | 8000 W |
Protection type (IP code) | IP40 |
Country of origin | China |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer Siemens fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Smart Home | Not compatible |
Items per sales unit | 1 Piece |
Scope of delivery | 400 V, Iu 16 A main switch 3-pole Rated operating power at AC-23, Switch-disconnector 3LD3 |
Length | 80 mm |
Width | 36 mm |
Height | 60 mm |
