Siemens Star-delta contactor UC 55kW/AC 20-33V 3RA2437-8XH32-1NB3
Product details

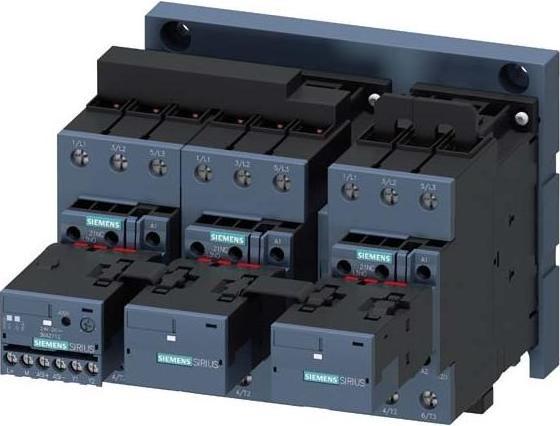

Siemens Digital Industry Star-Delta Combination 3RA2437-8XH32-1NB3
Manufacturer: Siemens Digital Industry
Designation: Star-Delta Combination AC 3, 55 kW/400 V
Type: 3RA2437-8XH32-1NB3
Function: Star-Delta Contactor
Rated Control Supply Voltage Us at AC 50 Hz: 20..33 V
Rated Control Supply Voltage Us at AC 60 Hz: 20..33 V
Rated Control Supply Voltage Us at DC: 20..33 V
Voltage Type for Actuation: AC/DC
Rated Operating Current Ie at AC-3, 400 V: 115 A
Rated Operating Power at AC-3, 400 V: 55 kW
Number of Contacts as Main Contacts: 3
Connection Type Main Circuit: Screw Connection
Protection Class (IP): IP20
Protection Class (NEMA): Other
Further Details:
Star-Delta Combination, AS-i AC-3, 55 kW/400 V, ACDC 20-33 V, 3-pole, Size S2, Screw Connection, Electrical and Mechanical Locking, 3 S + 3 Ö Integrated.
The SIRIUS 3RA24 Star-Delta Combination allows for a gentle start of three-phase asynchronous motors. It is a tested and factory pre-assembled combination of three 3RT2 contactors that are already wired and mechanically and electrically locked. The included function module with integrated control logic and timing replaces the complete wiring in the control circuit.
The devices are climate-resistant, globally approved (e.g., IEC and UL/CSA), and IE3/IE4 ready. The 3RA24 Star-Delta Combinations are available with AC and DC actuation in sizes S00 to S3. They are offered in screw and spring clamp connection technology for mounting on DIN rail or screw fastening. Additionally, variants for connection to IO-Link or AS-Interface are available.
The accessories for the 3RT2 contactors are uniform for all sizes and can also be used for the contactor combinations. The 3RA24 Star-Delta Combinations replace the proven 3RA14 series.
Simple, efficient, always up to date - the SIRIUS system modular concept.
EAN: 4011209938069.
