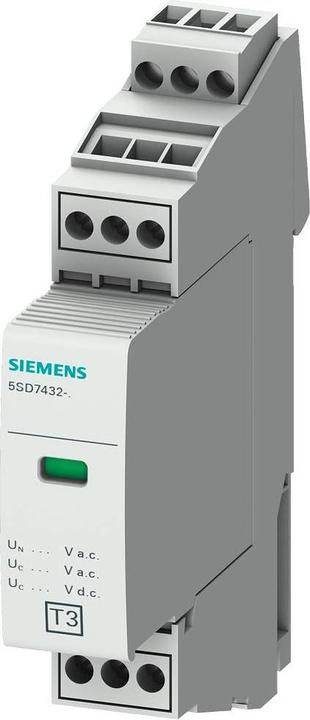

Siemens SPD type
Delivered between Sat, 20.6. and Sat, 27.6.
1 item ordered
1 item ordered
free shipping
Product details
The SPD Type 3 from Siemens is a highly advanced surge protector specifically designed to protect electrical systems. With a rated voltage of 120 V AC and 150 V DC, this device offers reliable protection against surges caused by lightning strikes or other electrical disturbances. The surge protector is equipped with a remote monitoring capability that allows for easy monitoring of the device's status. With a width of 17.7 mm, the SPD Type 3 is compact and can be easily integrated into various installations. The IP20 protection rating ensures that the device is suitable for use in dry indoor environments. This surge protector is an essential element for the safety and longevity of electrical installations.
- Reliable protection against surges from lightning strikes and electrical disturbances
- Remote monitoring capability for easy status monitoring of the device
- Test class Type 2 for increased safety
- Compact design with a width of only 17.7 mm.
Number of conductors | 2x |
Mounting type | Top-hat rail |
Test class | Type 3 |
Item number | 33686446 |
Manufacturer | Siemens |
Category | Surge protection |
Manufacturer No. | 5SD74326 |
Release date | 17.5.2023 |
Colour | Grey |
Exact colour description | Grey |
Number of conductors | 2x |
Lightning impulse current | 2 kA |
Rated leakage surge current | 10 kA |
Nominal voltage | 120 V |
Protection level | 750 V |
Mounting type | Top-hat rail |
Mounting type | Engagement |
Test class | Type 3 |
Protection type (IP code) | IP20 |
Country of origin | Germany |
Manufacturer commitment | RE100, SBTi |
CO₂ emissions | 29.48 kg |
Climate contribution | CHF 0.70 |
Width | 0.02 m |
Specifications may include unverified machine translations.
30-day right of return
24 Months Warranty (Bring-in)
