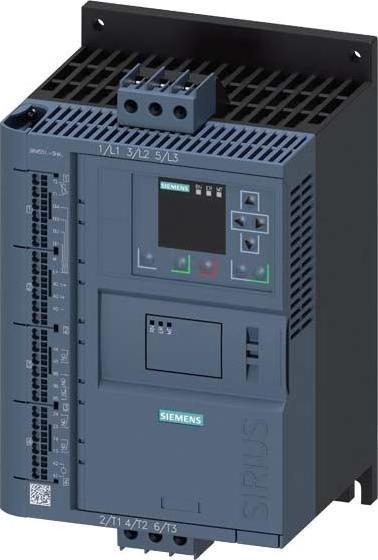

Siemens Soft starter

Sirius soft starter 200-600 V 32 A, AC/DC 24 V spring-loaded terminals. The Sirius 3RW55 high performance soft starter is designed for demanding applications requiring smooth starting and stopping of three-phase asynchronous motors. It allows for stepless starting, reduces current peaks, avoids voltage fluctuations during startup, relieves the power supply network, and decreases mechanical stress on the drive. Additionally, it offers significant space and wiring savings compared to star-delta starters and frequency converters, maintenance-free switching, and easy handling.

The integrated bypass enables a compact design, saves energy, and ensures lower heating in the control cabinet. Intelligent monitoring functions protect the soft starter from overheating and the motor from overload. You can also limit the current during startup to an adjustable maximum value. Thanks to the three-phase control, it is particularly suitable for large motor outputs and root-3 circuits. The innovative torque control ensures optimal motor startup.

Commissioning is simple and quick through auto-parameterization or application assistant. Predictive maintenance planning is possible through condition monitoring. A detachable HMI with a color display provides clear measurement and diagnostic displays. The soft starter has worldwide approvals, such as IEC and UL/CSA.

The high performance soft starters 3RW55 are available for networks up to 690 V in a power range up to 560 kW, with 24 V or 110-250 V control supply voltages, and consistently feature screw and spring-loaded connections. An analog output and thermistor motor protection are integral parts of the high performance soft starters. Optional plug-in communication modules allow connection via PROFINET, PROFIBUS, and Modbus TCP. The built-in HMI module can also be mounted on the control cabinet door.

The soft starters 3RW55 replace the proven 3RW44 series. Sirius 3RW5 soft starters - as flexible as your task.
