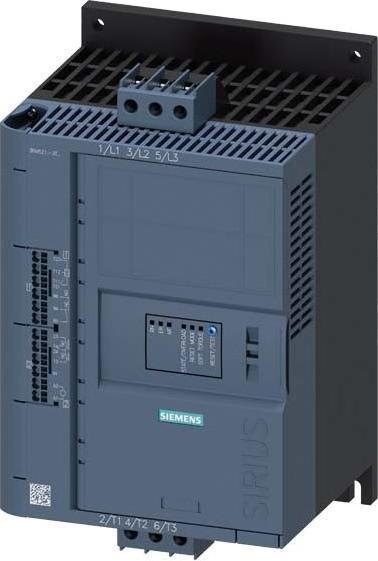

Siemens Soft starter

SIRIUS Soft Starter 200-480 V 38 A, AC 110-250 V spring-loaded terminals thermistor input. The SIRIUS 3RW52 General Performance soft starter is designed for simple applications to ensure smooth starting and stopping of three-phase asynchronous motors. It allows for stepless starting, reduces current peaks, avoids voltage fluctuations in the grid during startup, relieves the power supply network, and decreases mechanical stress on the drive. Additionally, it offers significant space and wiring savings compared to star-delta starters and frequency converters, maintenance-free switching, and easy handling.

The integrated bypass enables a very compact design, saves energy, and results in lower heating within the control cabinet. Intelligent monitoring functions protect the soft starter from overheating and the motor from overload. Furthermore, the current during startup can be limited to an adjustable maximum value. Thanks to the three-phase control, it is particularly suitable for large motor outputs and square root 3 circuits.

The innovative Soft-Torque function ensures a gentle motor startup. With the integrated remote reset, disturbances can be quickly and easily resolved from a distance. The soft starter has worldwide approvals (e.g., IEC and UL/CSA).

The General Performance soft starters 3RW52 are available for networks up to 600 V in a power range up to 560 kW with 24 V or 110-250 V control supply voltages and are consistently equipped with screw and spring-loaded connections. Different device variants are available for analog output and thermistor motor protection. Optional plug-in communication modules enable connection via PROFINET, PROFIBUS, and ModbusTCP. Various HMI modules are available for installation in the device or the control cabinet door. SIRIUS soft starters 3RW5 - as flexible as your task.
