Siemens Soft starter 18,5kW 400V SIRIUS 3RW40

Phase: 3
Supply Voltage: 200 to 480 Vac
Rated Current: 38 A
Operating Voltage: 480 Vac
Control Voltage: 110 to 230 Vac/dc
Power: 18.5 kW
Protection Class: IP20

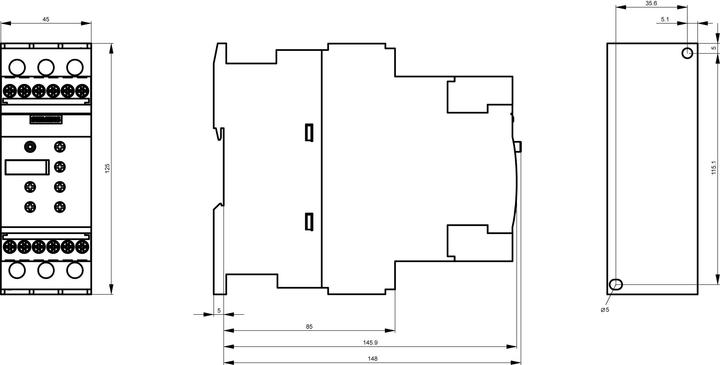

Overall Length: 125 mm
Overall Width: 45 mm
Overall Depth: 154 mm
Minimum Operating Temperature: -25 °C
Maximum Operating Temperature: +60 °C
Series: 3RW40

The specified depth measurements refer to the overall depth for each unit. The Sirius 3RW40 can be integrated into a motor control system that uses other control products from Sirius, such as 3-pole overload relays from the 3RV10 series. It features two phase controls as well as soft starting and stopping of three-phase asynchronous motors. Low power loss. The switch-on voltage can be adjusted to 40 to 100% of the operating voltage. Integrated bypass contacts. DIN rail mounting. Compact design and dimensions. Status indicator. Electronic motor overload and intrinsic device protection. Adjustable current limitation. Optional thermistor motor protection (up to version S3). Integrated remote reset (up to version S3). Integrated auxiliary contacts "holding" and "start signal". The holding contact is used for locking when the control is operated with a simple on/off switch. The start signal can be used to operate other parts of the system, such as a pump. An ideal replacement for direct and star-delta starters.
