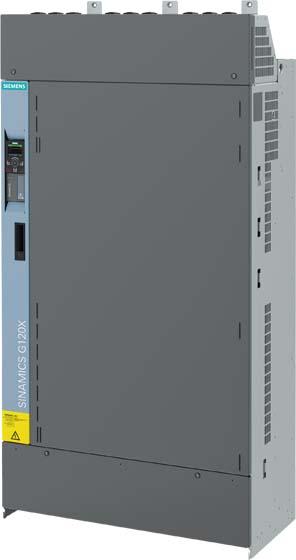

Siemens SINAMICS G120X

Sinamics G120X
Rated power: 500 kW at 135% 3S or 110% 60S, 100% radio interference filter for category 3 AC 380-480 V +10/-20% 47-63 Hz
Ambient temperature: 0 to +45 °C
Frame size: FSJ
Protection class: IP20 / UL open Type with intelligent Operator Panel without IO extension
Integrated fieldbus: Profinet-PN, Ethernet IP

The Sinamics G120X frequency converter is designed for applications in pumps/fans, as well as in the water/wastewater and building technology/HVAC sectors. The Sinamics G120X impresses with easy selection and ordering, straightforward handling out of the box, and simple integration into applications. Easy setup is possible with the Sinamics G120 Smart Access Module or the IOP-2 operator panel.

The Sinamics G120X operates reliably under all network conditions, meets EMC categories C2 and C1 optionally, and is particularly robust with an operating temperature range of -20 °C to +60 °C. Specific industry functions such as pipe filling mode and bypass function make the converter especially efficient. All devices in the series are consistent and uniform across all voltages and networks, and are designed for cost-optimized and resource-saving operation. Its compact design saves space in the control cabinet.

The Sinamics G120X is available in nine frame sizes with a power range from 0.75 kW to 630 kW. Additionally, this variant includes DC terminals for connecting du/dt filters. The Sinamics G120X frequency converter can be easily commissioned using various options such as an external Basic Operator Panel (BOP-2), the Smart Access Module (SAM), or the intelligent Operator Panel (IOP-2).

Sinamics - simply my drive.
