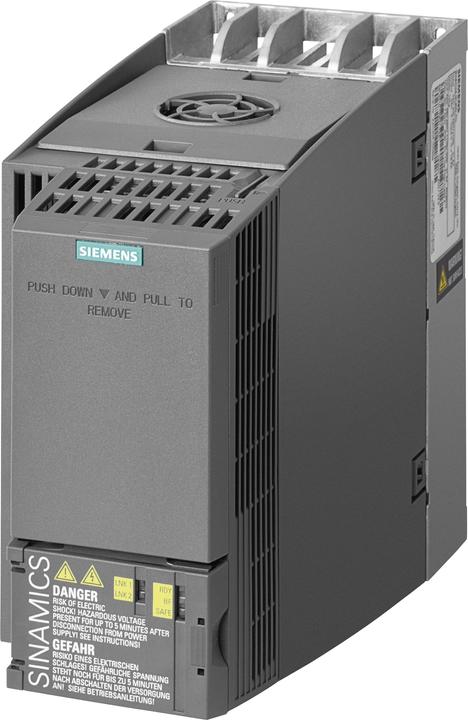

Siemens Sinamics G120C 7.5kW Modbus filter

Power: 7.5 kW
Phase: 3
Supply voltage: 400 V AC
Rated current: 16.5 A
Output frequency: 0 to 550 Hz
Total width: 100 mm
Total length: 196 mm
Total depth: 203 mm
Control panel: Yes
Fieldbus communication type: Modbus RTU, USS
Filter included: Yes
Series: SINAMICS G120C

SINAMICS G120C - Compact inverters and accessories. SINAMICS G120C compact inverters offer a balanced combination of features for a wide range of applications. The inverters are compact, rugged units that are easy to operate and can be optionally equipped with a basic or advanced control panel.

Features and benefits:

• G120C with compact design
• Side-by-side design
• High power density, small enclosure dimensions
• Easy installation, small footprint
• For use in small control cabinets, close to the machine
• Optimized parameter setting
• Optimized commissioning
• BOP-2 or IOP control panels can be used
• Integrated USB connection
• Easy and fast software parameter assignment
• Simple operation during commissioning and operation
• High serviceability, easy maintenance
• Plug-in terminals
• Cloning function with BOP-2 or SD card
• Operating hour counters for "Drive on" and "Motor on"
• Fast mechanical installation
• Intuitive standard commissioning
• Energy-saving, sensorless vector control
• Automatic flux reduction with V/f ECO
• Integrated computer for energy saving
• Integrated safety (STO)
• Integrated communication interfaces
• Coated modules
• Operation up to an ambient temperature of 60 °C (see power reduction data).
