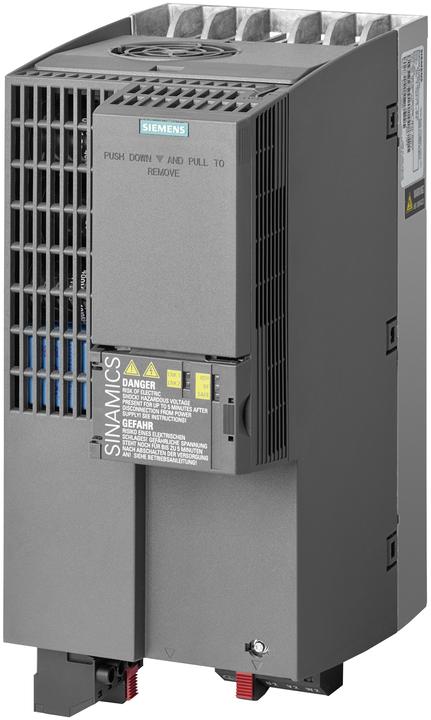

Siemens Sinamics G120C 18.5kW Unfilt Inverter

Power = 18,5 kW
phase = 3
Supply voltage = 400 V
Rated current = 37 A
Output frequency = 0 → 550Hz
Ambient temperature = 0 → +40°C
Total width = 295mm
Total length = 140mm
Total depth = 200mm
Control panel = Yes
Fieldbus communication type = Modbus RTU, USS
Series = SINAMICS G120C

SINAMICS G120C - Compact inverters and accessories. SINAMICS G120C compact inverters offer a balanced combination of features for a wide range of applications. The inverters are compact rugged units that are easy to operate and can be optionally equipped with a basic or advanced control panel. Features and benefits. G120C with compact design Side-by-side design High power density, small enclosure dimensions Easy installation, small footprint For use in small control cabinets, close to the machine Optimized parameter setting Optimized commissioning BOP-2 or IOP control panels can be used Integrated USB connection Easy and fast software parameter assignment Simple operation during commissioning and operation High serviceability, Easy maintenance Plug-in terminals Cloning function with BOP-2 or SD card Operating hour counters for "Drive on and "Motor on Fast mechanical installation Intuitive standard commissioning Energy-saving, sensorless vector control Automatic flux reduction with V/f ECO Integrated computer for energy saving Integrated safety (STO) Integrated communication interfaces Coated modules Operation up to an ambient temperature of 60 °C (see power reduction data).
