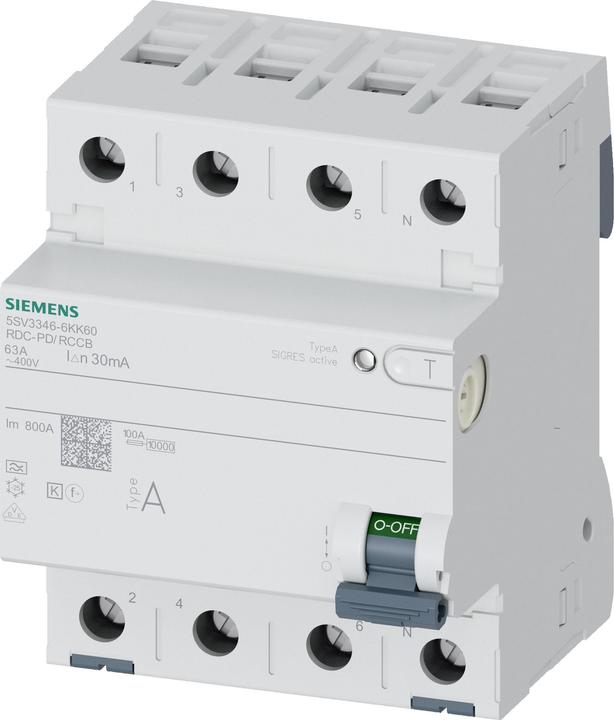

Siemens SIEM RCD circuit breaker

Ratings
BrandMore from Siemens
Delivered between Thu, 30.7. and Thu, 13.8.
1 item ordered
free shipping

Product details

Siemens Digital Industry RCD 4-pole 5SV3346-6KK60

Manufacturer: Siemens Digital Industry
Description: 4-pole RCD
Type: 5SV3346-6KK60
Number of poles: 4
Rated voltage: 400 V
Rated current: 63 A
Rated residual current: 0.03 A
Mounting type: DIN rail
Residual current type: A
Selective type: no
Delayed type: yes
Short-circuit strength (Icw): 10 kA
Surge current strength: 3 kA
Voltage type: AC
With locking device: yes
Frequency: 50/60 Hz
Additional devices possible: yes
Protection class (IP): IP20
Width in division units: 4
Installation depth: 70 mm
Ambient temperature during operation: -25..45 °C
Connectable conductor cross-section multi-stranded: 0.75..35 mm²
Connectable conductor cross-section single-stranded: 0.75..35 mm²
Explosion-proof: no

The SENTRON 5SV3 RCD provides comprehensive protection for people and property against electric shock. The RCDs ensure reliable safety during installation due to the standard included gripping and touch protection. With the convenient slide manual operation, you can easily detach the RCDs from the DIN rail or busbar system without tools. The data matrix code on the device provides quick access to all technical data in the Siemens Industry Online Support App. SENTRON protective devices can be expanded with a wide range of functions using the comprehensive accessories from the system modular kit. Optimal technology for your safety - exclusively from Siemens.
EAN: 4001869601007.

Key specifications

Circuit breaker type
Fault current circuit breaker
Mounting type
Top-hat rail
number of poles
4
Length
70 mm
Width
177.80 mm

General information

Item number
33686683
Manufacturer
Siemens
Category
Residual-current device
Manufacturer No.
5SV33466KK60
Release date
17.5.2023

Colour

Exact colour description
N.a.

Circuit Breaker Features

Circuit breaker type
Fault current circuit breaker
Mounting type
Top-hat rail
number of poles
4
Rated current
63 A
Rated voltage
400 V
voltage type
AC
Insulation voltage (Ui)
400 V
Residual current
0.03 A
Protection type (IP code)
IP20

Origin

Country of origin
Germany

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

CO₂ emissions
18.08 kg
Climate contribution
CHF 0.43

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Length
70 mm
Width
177.80 mm
Height
70 mm
