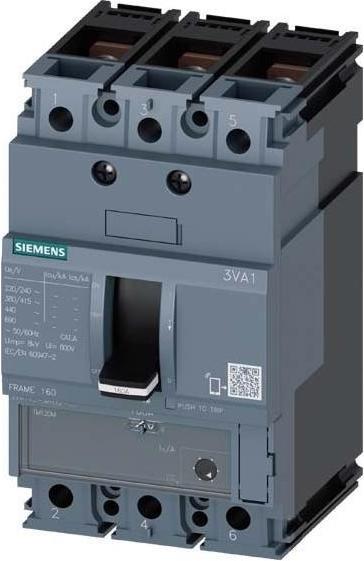

Siemens SIEM circuit breaker

Siemens Dig.Industr. circuit-breaker 3VA1132-6MH32-0AA0 Manufacturer :Siemens Dig.Industr. Designation :Circuit-breaker 3VA1 IEC Frame 160 Type :3VA1132-6MH32-0AA0 Rated continuous current Iu :32 A Rated voltage :690 V Rated short-circuit breaking current Icu at 400 V, 50 Hz :70 kA Setting range of instantaneous short-circuit release :220...510 A Integrated earth fault protection :no Type of connection main circuit :screw connection Type of device :built-in device fixed installation technology Suitable for top-hat rail mounting :yes Top-hat rail mounting optional :yes With trip indicator :no With integrated undervoltage release :no Number of poles :3 Position of connection for main circuit :front Design of operating element :toggle lever Complete device with protection unit :yes Motor drive integrated :no Motor drive optional :yes Protection class (IP) :IP40 Siemens Dig.Industr. circuit-breaker 3VA1132-6MH32-0AA0: further details Circuit-breaker 3VA1 IEC Frame 160 Breaking capacity class H Icu=70kA @ 415V 3-pole, starter protection TM120M, AM, In=32A without overload protection Short-circuit protection Ii=7...16 x In Screw-flat connection Compact circuit-breaker 3VA1 for starter protection. The 3VA compact circuit-breakers from Siemens are an important part of the SENTRON protection components for industrial applications and for applications in the infrastructure sector and offer effective system, starter and motor protection through safe disconnection in the event of an overload or short-circuit. The 3VA compact circuit-breakers set standards in flexibility and modular accessory diversity. Uniform accessories for several sizes across all series of the 3VA1 and 3VA2 compact circuit-breaker. This version of the 3VA compact circuit-breaker is characterised above all by: 1. compact design. 2. available as a variant for starter protection to protect electric motors against short-circuits. 3. available as a 3-pole version. 4. depending on size: rated operational current of 32 A....200 A. 5. breaking capacity of 55 kA ... 70 kA at 415 V. 6. fixed mounting and plug-in mounting possible. 7. the series has a thermal-magnetic overcurrent release 8. modular and easy-to-install internal accessories with a wide range of functions. 9. universal accessory platform across all 3VA compact circuit-breakers. , EAN: 4042948828311.
