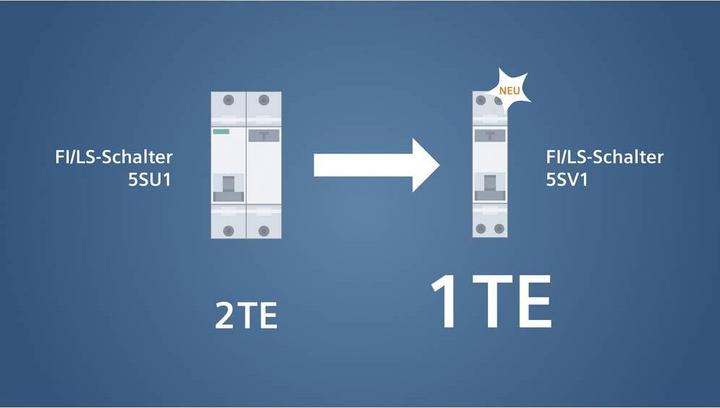

This compact RCD/RCCB is VDE-tested and certified in accordance with DIN EN 61009-1, DIN EN 61009-2-1. The compact 5ST pin busbar system allows you to quickly and easily connect the 1P+N compact devices in just 1 TE without requiring additional space. The data matrix code on the device gives you quick access to all technical data in the Siemens Industry Online Support App. The Sentron protective switching devices can be expanded with many functions using the universal accessories from the modular system.
Optimum technology for your safety - only from Siemens.
Circuit breaker type | Miniature circuit-breaker/residual current circuit-breaker combination |
Length | 77 mm |
Width | 18 mm |
number of poles | 1 |
Mounting type | Top-hat rail |
Item number | 10296627 |
Manufacturer | Siemens |
Category | Residual-current device |
Manufacturer no. | 5SV13167KK13 |
Release date | 9.1.2019 |
Sales rank in Category Residual-current device | 28 of 28464 |
External links |
Colour | Grey |
Exact colour description | Grey |
Circuit breaker type | Miniature circuit-breaker/residual current circuit-breaker combination |
Mounting type | Top-hat rail |
number of poles | 1 |
Tripping characteristic | C |
Rated current | 13 A |
Rated current | 0.03 A |
Rated voltage | 230 V |
voltage type | AC |
Rated insulation voltage Ui | 253 V |
Residual current (rated differential current) | 0.03 A |
Protection type (IP code) | IP20 |
Country of origin | China |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer Siemens fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 Piece |

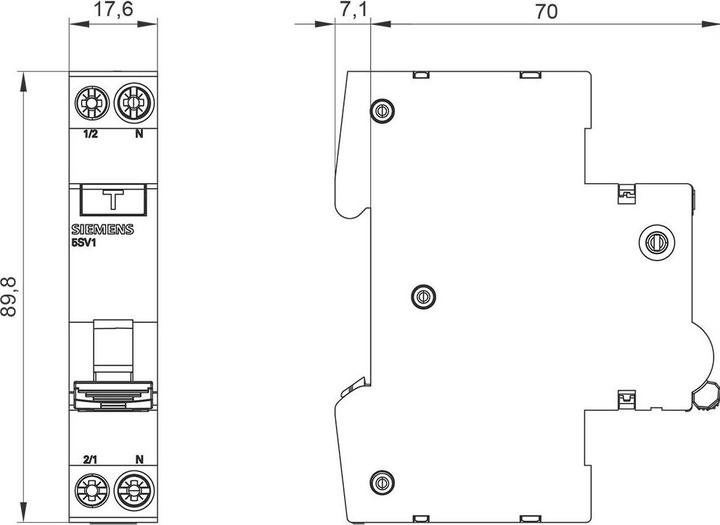

Length | 77 mm |
Width | 18 mm |
Height | 90 mm |
Weight | 110 g |
Length | 9.50 cm |
Width | 8.50 cm |
Height | 2.10 cm |
Weight | 123 g |
