Siemens RCCB Type A 63A 3+N-pole 300mA 400V 4mW

Ratings
BrandMore from Siemens
Delivered between Fri, 30.5. and Mon, 2.6.
Only 2 items in stock at third-party supplier
Supplied by

Product details

Number of poles: 3P + N
Rated current: 63A
Trip sensitivity: 300mA
AC rated voltage: 400 V AC
Mounting type: DIN rail mounting
Range: Sentron
Turn off time: Instantaneous
Series: 5SV3
Total width: 77.2mm

Ground fault circuit interrupter series 5SV3. Professional ground fault circuit interrupter from Siemens from the 5SV3 series. Available in 2 or 4 pole versions. Each circuit breaker can be mounted on a DIN rail. All models are very reliable and of excellent quality. Residual current operated overload switch for occupational safety and fire protection. Silicone-free, 2 or 4 pole with instantaneous tripping and surge current withstand of over 1 kA. Device lifetime exceeds 10,000 switching cycles. Enclosure rated IP20. Ambient temperature range is -25 to +45 °C. Instantaneous interrupting time provides safe protection against residual currents. New type designed for more convenience with easy and safe installation.

Key specifications

Circuit breaker type
Fault current circuit breaker
Length
70 mm
Width
72 mm
mounting style
Top-hat rail
number of poles
4
Item number
9718056

General information

Manufacturer
Siemens
Category
Residual-current device
Manufacturer no.
5SV3646-6
Release date
24.9.2018
Sales rank in Category Residual-current device
37 of 14767
External links
Manufacturer's site (de)

Colour

Colour
Grey
Exact colour description
Grey

Circuit Breaker Features

Circuit breaker type
Fault current circuit breaker
mounting style
Top-hat rail
number of poles
4
Tripping characteristic
A
Rated current
63 A
Rated current
0.3 A
Rated voltage
400 V
voltage type
AC
Rated insulation voltage Ui
2000 V
Residual current (rated differential current)
0.30 A
Protection type (IP code)
IP20

Origin

Country of origin
Germany

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer Siemens fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

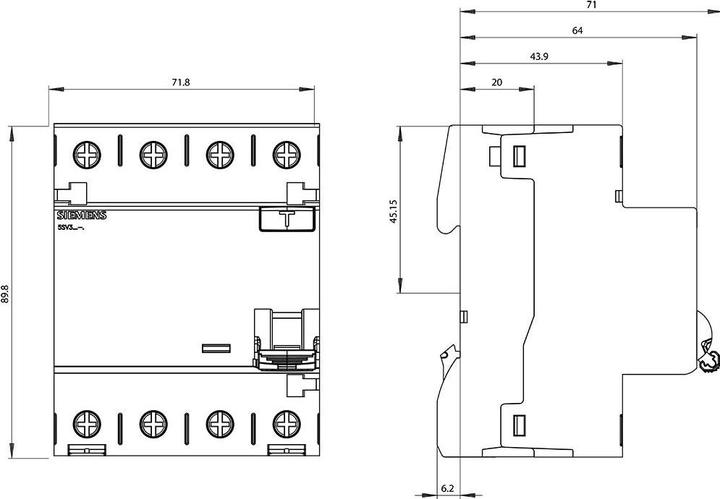

Product dimensions

Length
70 mm
Width
72 mm
Height
90 mm

Package dimensions

Length
10 cm
Width
10 cm
Height
8 cm
Weight
320 g
