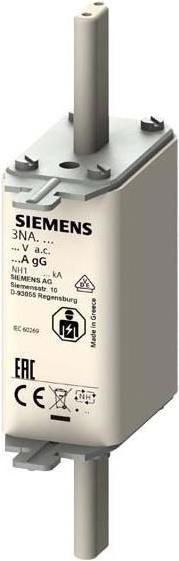

Siemens NH fuse link

63 A, Minimum order 5
Ratings
BrandMore from Siemens
Delivered between Fri, 4.9. and Tue, 8.9.
More than 10 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Product details

Siemens Industrial Sector NH Fuse Insert 3NA3122

Manufacturer: Siemens Industrial Sector
Description: NH Fuse Insert G1 63A 500AC/440VDC
Type: 3NA3122
Fuse size according to IEC 60269: NH1
Voltage type: AC/DC
Rated current: 63 A
Rated breaking capacity: 120 kA
Operating class: gL/gG (Full-range line protection/Full-range device protection)
Indicator type: Front indicator
Insulated metal grip bottles (IMGL): no

Further details:
NH fuse insert, NH1, In: 63 A, gG, Un AC: 500 V, Un DC: 440 V, front indicator, live grip bottles.

The NH fuse system 3NA, 3ND offers selective line and plant protection. It is an essential component of the SENTRON protection devices for electrical installations and provides effective protection for people, devices, and installations through safe disconnection in the event of overload and short circuit. Compared to circuit breakers, higher short-circuit currents can be achieved with better current limitation.

The NH fuse system is characterized by:
1. Combination indicators signal the disconnection of the fuse with a clear color change from red to white.
2. Increased safety when changing due to insulated grip bottles.
3. High selectivity at low costs.
4. Long-term and safe operation due to silver-plated contact blades.
5. Fuse inserts available from 2 A to 1250 A and in sizes 000, 00, 0, 1, 2, 3, 4, and 4a.

EAN: 4001869055855.

Key specifications

Fuse type
Diazed fuse
Nominal current
63 A
Nominal voltage
500 V

General information

Item number
20348275
Manufacturer
Siemens
Category
Fuses
Manufacturer No.
3NA3122
Release date
30.3.2022
Minimum order
5
Order quantity steps
5

Colour

Colour
Multicoloured
Exact colour description
Multicoloured

Material

Material group
Metal

Backup Features

Fuse type
Diazed fuse
Nominal current
63 A
Nominal voltage
500 V
voltage type
AC/DC

Origin

Country of origin
China

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

CO₂ emissions
1.47 kg
Climate contribution
CHF 0.11

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Width
143 mm
Length
71 mm
Height
93 mm
