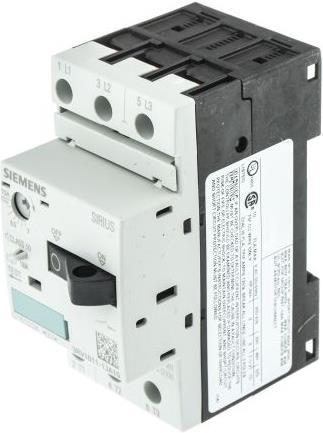

Siemens Motor circuit breaker 7-10A

Ratings
BrandMore from Siemens
Delivered between Thu, 12.6. and Fri, 13.6.
Only 1 item in stock at third-party supplier
Supplied by

Product details

Current range: 7 to 10 A
Number of poles: 3P
Range: Sirius Innovation
Breaking capacity: 50 kA
Connection type: Screw fixing
Operating voltage: 690 V
Length: 90 mm
Width: 45 mm
Depth: 81 mm
Dimensions: 90 x 45 x 81 mm
Series: 3RV1

UL, CSA, IEC947, VDE0990, EN60947. Three pole overload switches - 3RV 10 series. Maximum rated current: 100 A (45 kW at 400 Vac). Rated operating voltage: 690 V. Short circuit proof up to 50 kA at 400 Vac. Maximum switching frequency: 15 operations per hour. Mechanical life: 100,000 operations. Ambient temperature range: -20 to +60 °C. Long-term stability. Manual reset. Can be locked in OFF position.

Key specifications

Circuit breaker type
Motor protection switch
Length
100 mm
Width
45 mm
number of poles
3
Item number
9723112

General information

Manufacturer
Siemens
Category
Residual-current device
Manufacturer no.
3RV10111JA10
Release date
24.9.2018
External links
Manufacturer's site (de)

Circuit Breaker Features

Circuit breaker type
Motor protection switch
number of poles
3
Rated current
10 A
Rated voltage
690 V
voltage type
AC/DC
Protection type (IP code)
IP20

Origin

Country of origin
China

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer Siemens fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
100 mm
Width
45 mm
Height
90 mm

30-day right of return if unopened
24 Months Warranty (Bring-in)
