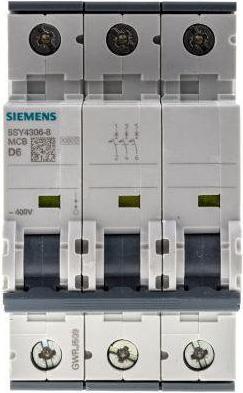

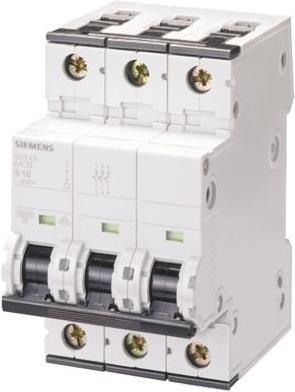

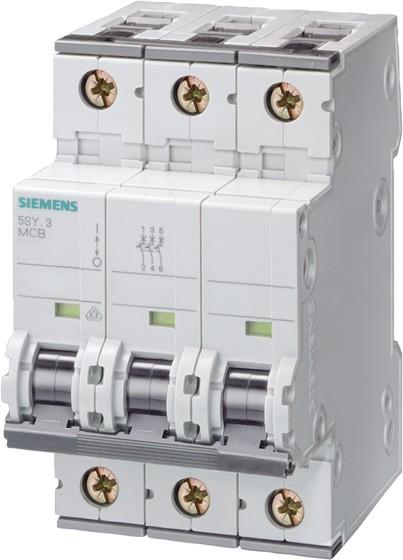

Siemens MCB 3 Pole Type D 10kA 6A 400V

Range = Sentron
Series = 5SY4
Number of poles = 3
Rated current = 6 A
Tripping characteristic = Type D
AC rated voltage = 400 V
Breaking capacity = 10 kA
Length = 89.8mm
Width = 52.8mm
Depth = 76mm

Automatic disconnect, 5SY4 series, 10 kA, B, C and D. Miniature overload switches from Siemens offer the highest quality and reliability. With the excellent technical features of the devices, you are always on the safe side. In addition, you benefit from the innovative mounting options that enable quick and easy installation. Siemens miniature overload switches can be combined with a wide range of additional components as required, e.g. control current switches, fault signal contacts, shunt releases, undervoltage releases, remote control mechanisms or with RCD units for the protection of persons and against fire. Features and benefits. Automatic breakout, 1-, 2-, 3- and 4-pole DIN rail mounting For use in industrial and functional and residential construction sectors Supports quick and convenient removal from the assembly. Standards. IEC 60898 - Refers to low voltage circuit breakers for use in domestic and similar installations. Traditionally known in the UK as circuit breakers (miniature circuit breakers,). Q: What are the differences in tripping characteristics B, C and D?. A: Characteristic, B: Tripping: 3 to 5 times rated current. Applications: Protection of generators, people, very long cables Characteristic, C: Tripping: 5 to 10 times rated current Applications: Protection of circuits and general applications Characteristic D: Tripping: 10 to 14 times rated current Applications: Protection of high voltage circuits, welders, transformers and motors.
