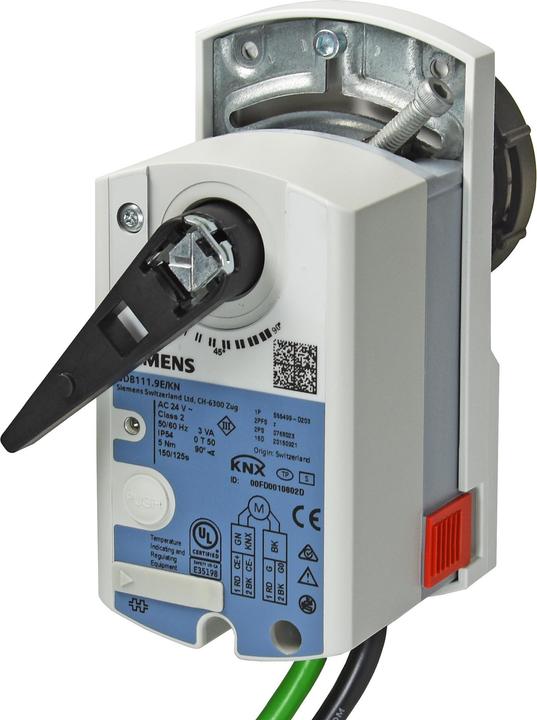

Siemens GLB111.9E/KN Rotary actuator without spring return

Siemens digital industrial rotary actuator GLB111.9E/KN

Manufacturer: Siemens Digital Industrial
Designation: Rotary actuator without spring return
Type: GLB111.9E/KN
Suitable for valves: Yes
Suitable for ventilation valves: No
Mains voltage: 24 V AC
Control signal: Other
Communication protocol: KNX
Energy consumption in operation: 2.5 W
Energy consumption at standstill: 500 W
Version: Rotating
Control type on/off: No
Control type modulating: Yes
Control type split-range: No
Length of connection cable: 0.9 m
Transmission: With gear wheels
Connection to valve: Other
With head flange direct mount to ISO 5211: No
With zero-voltage return: No
Voltage-free when closed: No
Operating mode of safety function: Normally open
Automatic stroke detection: No
Adjustable status signal: No
Auxiliary contacts: No
Status signal: Bus connection
Auxiliary contacts optional: No
End contacts: Without
Operating range adjustable: Yes
With mechanical level indicator: Yes
Suitable for manual operation: Yes
Running time: 150 s
Torque: 10 Nm
Potential-free switching contact: No
Self-adjustable stroke length: No
Max. angle of rotation: 90 °
With safety function: No
Protection class (IP): IP54
Max. electrical power consumption: 3 VA
Permissible relative humidity: 5 to 95 %
Ambient temperature: 0 to 50 °C
Height: 112 mm
Width: 88 mm
Depth: 143 mm
Explosion-proof: No
Housing material: Plastic

Further details: Electromotive rotary actuator for KNX S-Mode or KNX PL-Link for 2/3-way ball valves up to DN50 and for 6-way characterised control valves up to DN50, without spring return, pre-wired with a power supply cable and a KNX connection cable.
