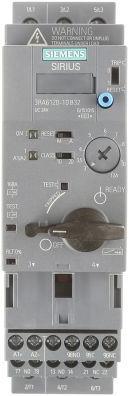

Siemens Direct starter SIRIUS 3-12A 24V

Series: 3RA6
Module Type: Compact Load Controller
Range: Sirius
Power: 5.5 kW
Control Voltage: 24 Vac/dc
Current Range: 3 → 12 A

The rated power is based on a 4-pole motor at 400 V AC. Sirius 3RA61 Compact Direct Starter. The SIRIUS 3RA6 Compact Starters are innovative load controllers with the integrated functions of an overload relay, contactor, and semiconductor overload relay. Additionally, various functions of optionally mountable accessories (auxiliary contacts, protective devices) are already integrated into the compact SIRIUS starters. Three wide voltage ranges and five broad setting ranges for the rated current. Automatic device reset in case of overload and differentiated detection of overload and short circuit. Effective current distribution through the associated SIRIUS Infeed System for 3RA6. Direct connection of the motor supply cable to the SIRIUS Infeed System for 3RA6 via an integrated PE bar. Connection and wiring via incoming supply lines up to a cross-section of 70 mm².
