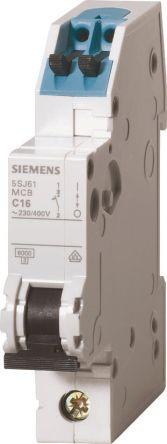

Siemens Circuit breaker type C 16A 2-pole

Ratings
Delivered between Sat, 16.8. and Wed, 3.9.

Product details

Range = Sentron
Series = 5SJ6
Number of poles = 2
Rated current = 16 A
Tripping characteristic = Type C
AC rated voltage = 230V, 400V
DC rated voltage = 60V
breaking capacity = 6 kA
length = 90mm
width = 36mm
Depth = 76mm

EN 60898, VDE 0641 part 11, IEC 60898. 5SJ6 MCB series - 6 kA, characteristic B and C. Miniature circuit breaker with fast plug-in terminals Mainly used to protect socket connection boxes and lighting circuits with rated currents from 10 to 63 A DIN rail mounting Contact protection according to VBG4 / BGV A2 Rated voltage: 1P - 230 / 400 Vac; 1P+N - 230 Vac; 2P / 3P +N / 4P - 400 Vac Cut-off current: 6 kA Double screwless outgoing terminal for rigid and flexible conductors: - Rigid: 1 to 4 mm - Flexible: 1 to 2.5 mm No end sleeves required for flexible conductors Completely compatible with all other 5SJ and 5SY miniature overload switches Toolless disconnection and manual removal Depth: 70 mm.

Key specifications

Circuit breaker type
Miniature circuit breaker
Length
90 mm
Width
36 mm
mounting style
Built-in
number of poles
2
Item number
9729256

General information

Manufacturer
Siemens
Category
Residual-current device
Manufacturer no.
5SJ62167KS
Release date
24.9.2018
External links
Manufacturer's site (de)

Colour

Colour
Grey
Exact colour description
Grey

Circuit Breaker Features

Circuit breaker type
Miniature circuit breaker
mounting style
Built-in
number of poles
2
Tripping characteristic
C
Rated current
16 A
Rated voltage
400 V
voltage type
AC/DC
Rated insulation voltage Ui
440 V
Protection type (IP code)
IP20

Origin

Country of origin
Romania

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer Siemens fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
90 mm
Width
36 mm
Height
90 mm
