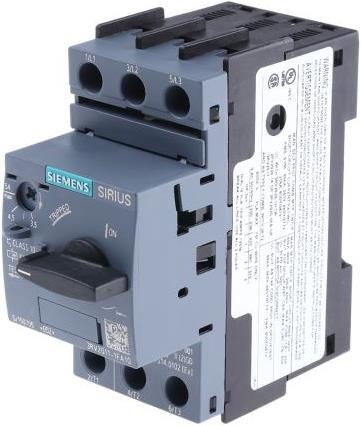

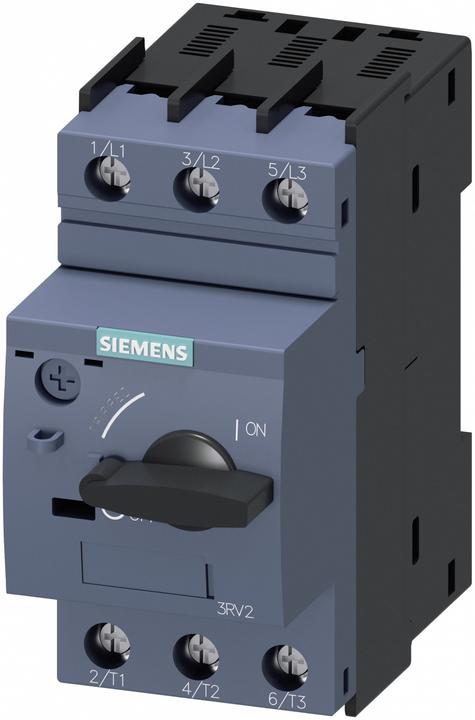

Circuit breaker size S00 for motor protection, CLASS 10 A release 3.5...5 A N release 65 A screw connection. Standard switching capacity circuit breaker SIRIUS 3RV2 for motor protection ensures safe disconnection in case of short circuits and protects consumers and installations from overload, as well as providing safe isolation of the system from the network. The compact and climate-resistant circuit breakers are optimized for use in consumer branches due to their low heat dissipation, and they are naturally suitable for IE3/IE4 motors and for switching direct current. Worldwide approvals (e.g., IEC and UL/CSA) and applications in explosion-prone environments (ATEX or IEC Ex) are standard. Device variants are available for motor protection (also with overload relay function), system protection, short circuit protection of starter combinations, transformer protection, as main and emergency stop switches, and for use in IT networks. They come with screw or spring terminal connections for quick, maintenance-free, and vibration-resistant connections, and optionally with built-in auxiliary switches. The comprehensive accessories, such as auxiliary switches, auxiliary releases, signaling switches, etc., are uniform across all sizes. The use of various power supply options, such as the associated power supply system SIRIUS 3RV29, significantly reduces the main circuit wiring. The circuit breakers 3RV2 replace the proven series 3RV1. Simple, efficient, always up to date - the SIRIUS system modular design.
Circuit breaker type | Circuit breaker |
Length | 100 mm |
Width | 45 mm |
number of poles | 3 |
Item number | 9724524 |
Manufacturer | Siemens |
Category | Residual-current device |
Manufacturer no. | 3RV2011-1FA10 |
Release date | 24.9.2018 |
Colour | Multicoloured |
Exact colour description | Multicoloured |
Circuit breaker type | Circuit breaker |
Mounting type | Screw fastening |
number of poles | 3 |
Tripping characteristic | Sluggish --- |
voltage type | AC/DC |
Protection type (IP code) | IP20 |
Country of origin | China |
Manufacturer commitment | RE100, SBTi |
Manufacturer compensation | According to RE100, the manufacturer Siemens fully compensates for its energy consumption, leading to a reduction in emissions. |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 Piece |
Length | 100 mm |
Width | 45 mm |
Height | 97 mm |
Weight | 350 g |
