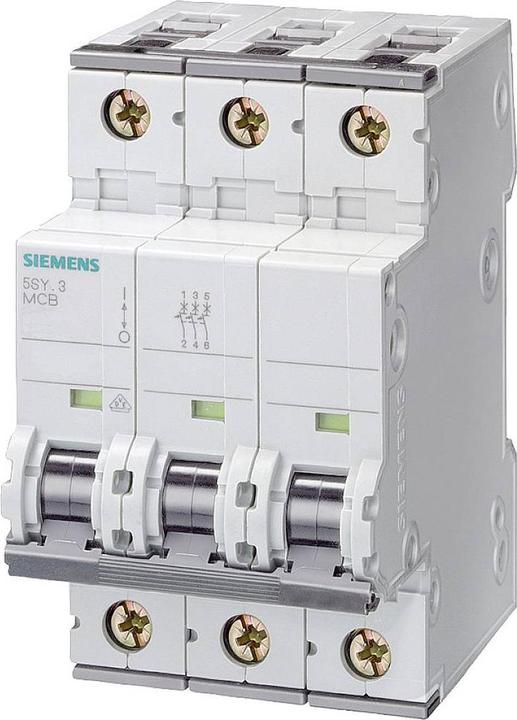

Siemens Circuit breaker 3 pole 20A type C

Area: Sentron
Series: 5SY4
Number of Poles: 3
Rated Current: 20 A
Tripping Characteristic: Type C
AC Rated Voltage: 400 V
Breaking Capacity: 10 kA

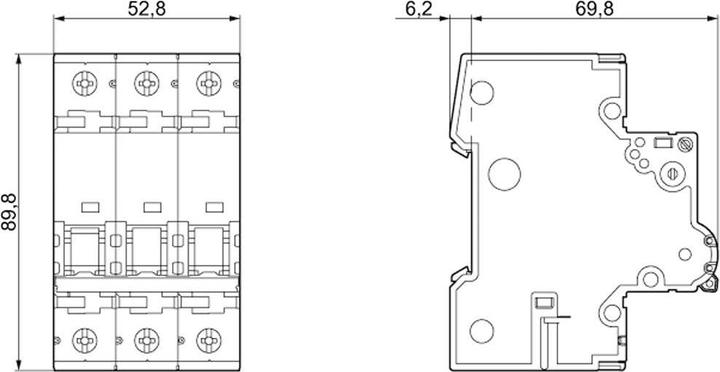

Length: 89.8 mm
Width: 52.8 mm
Depth: 76 mm

Standards: EN 60898; DIN VDE 0641; Part 11; IEC 60898. Stratum 400 MCBs. Professional series of miniature circuit breakers from the 5SY4 series by Siemens. These circuit breakers feature Type C characteristics, providing short-circuit reactions and protection at a supply voltage of 400 V. The breaking capacity in the event of a short-circuit current is 10 kA. The 5SY4 series device protection switches are available with 1 or 3 poles and can be used in industrial applications. All models are highly reliable and of excellent quality. Terminal capacity: 35 mm² (solid and stranded - upper and lower terminal); 25 mm² (fine stranded with end sleeves - upper and lower terminal). IP protection class: IP20 (according to DIN 40 050); IP40 (when mounted in distribution boxes).
