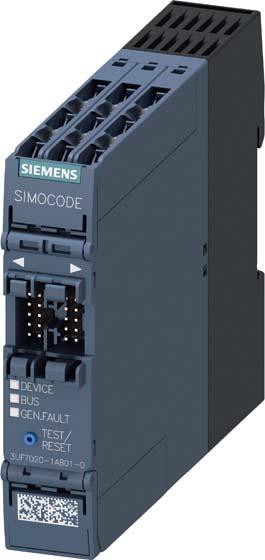

Siemens Basic unit 3UF7020-1AB01-0 1 pc.
Product details
Basic device SIMOCODE pro S, PROFIBUS DP interface 1.5 MBit/s, 4E/2A freely configurable, power supply: 24 V DC, input for thermistor connection, monostable relay outputs, expandable with a multifunction module. The motor management system SIMOCODE pro S offers comprehensive protection, monitoring, and control functions for asynchronous motors, as well as detailed operational, service, and diagnostic data for process control systems and controllers via common fieldbus systems.
This compact motor management system with PROFIBUS DP interface is suitable for direct, reversing, star-delta starters, or for controlling a circuit breaker or soft starter, operating independently of the automation system. Its expandability with a multifunction module provides a wide range of input and output options, precise earth fault detection via the differential current transformer 3UL23, and temperature monitoring. The system delivers detailed operational, service, and diagnostic data anytime and anywhere.
Global approvals (e.g., IEC and UL/CSA) are also available for explosion-hazardous applications (ATEX or IEC Ex). It supports the use with IE3/IE4 motors. The software SIMOCODE ES (TIA Portal) is available for project planning, commissioning, operation, and diagnostics of SIMOCODE pro. With the SIMOCODE pro library for SIMATIC PCS 7, SIMOCODE pro can be easily integrated into the SIMATIC PCS 7 process control system.
The SIMOCODE pro S basic devices are available with DC 24 V or AC/DC 110-240 V control supply voltage. At least one current sensing module and a suitable connection cable are required for operation. These, along with an optional operating module and a multifunction module, are available separately. A step into the future with SIMOCODE pro.
