Siemens Basic line
Product details

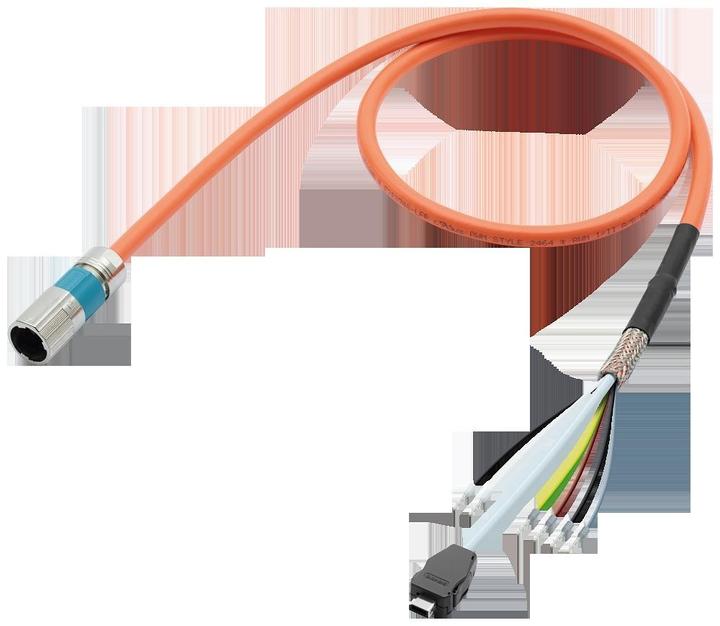

Siemens Digital Industry Basic Cable 6FX5002-8QN21-1CK0
Manufacturer: Siemens Digital Industry
Designation: Basic Cable MOTION-CONNECT 500
Type: 6FX5002-8QN21-1CK0
Additional Details:
Single cable assembly 4G2.5+1Q0.2STC+1P1.5C-C
Connector SPEED-CONNECT M23
Wires with wire sleeve
Data cable with IX connector
UL/CSA DESINA MOTION-CONNECT 500
Dmax = 13.3 mm
Length (m) = 0 + 20 + 9 + 0
One Cable Connection (OCC) MOTION-CONNECT is the simple, fast, and secure connection for the servo drive SINAMICS S210 and the servo motor SIMOTICS S-1FK2. The servo motor and the servo drive are connected using only one cable instead of the usual two or three wires. This single-cable technology with SPEED-CONNECT quick release combines power, encoder connection, and brake control into one cable.
This results in several advantages, such as the time-saving installation of just one cable and reduced installation space or space requirements for cable routing. It is also beneficial that only one cable needs to be cleaned, especially in industries with high hygiene standards.
The cable is also available in precise decimeter lengths and features a motor-side M17 or M12 connector (the smallest OCC connector in the world). Easy installation is possible even in tight spaces with the compact motor and small, rotatable connector. The cable is designed with an IP20 protection rating on the drive side and an IP65 protection rating on the motor side.
Optimized connection technology through OCC (One Cable Connection).
EAN: 4034106443436.
