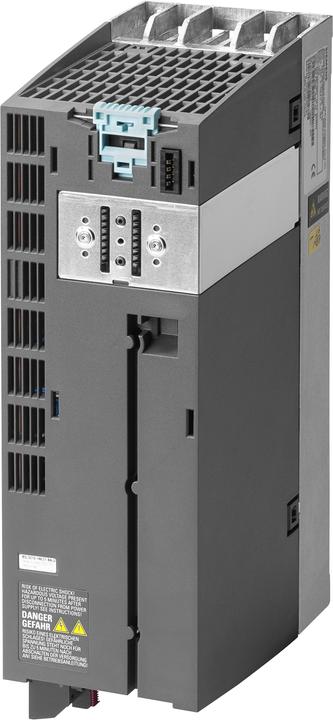

Siemens 6SL3210-1PE21-8UL0

SINAMICS Power Module PM240-2 unfiltered with integrated brake chopper 3AC 380-480V ±10% 47-63Hz. High overload power: 5.5 kW at 200% 3S, 150% 57S, 100% 240S, ambient temperature -10 to +50°C. Low overload power: 7.5 kW at 150% 3S, 110% 57S, 100% 240S, ambient temperature -10 to +40°C. Dimensions: 291 x 100 x 165 (HxWxD), FSB protection class IP20 without control unit and operating unit, approved from CU firmware version V4.6.

The SINAMICS Power Module PM240-2 is the ideal power module for standard applications in mechanical engineering for the modular frequency converter SINAMICS G120. As part of the modular frequency converter SINAMICS G120 (consisting of power section, control unit, operating panel), the power modules PM240-2 (protection class IP20) feature a brake chopper (four-quadrant applications) and are suitable for a variety of applications in general mechanical engineering.

The power section PM240-2 can be flexibly combined with different control units depending on the application scope and safety requirements (for example, STO, SS1, SBC, SLS, SDI, SSM). In combination with the control units CU230-2, CU240x-2, and CU250S-2, the functional frequency converter SINAMICS G120 is created.

The PM240-2 in protection class IP20 is a panel-mounted device for the control cabinet in a power range from 0.55 kW to 250 kW, as well as in three voltage variants of 200 V, 400 V, and 690 V. The power modules are available unfiltered or with an integrated Class A line filter and in seven frame sizes from FSA to FSG.

To optimally dissipate the loss heat outside the control cabinet, the power section is also available as a push-through variant. The frame sizes also offer Safety Integrated. Due to the robust design, cable lengths of up to 450 meters (frame size FSF/FSG) can be achieved. For EMC-compliant wiring, shielding plates and shield connection sets are available. SINAMICS - simply my drive.
