Shelly Wave 1PM Mini EU LR

Switch actuator
Delivered tomorrow
5 pieces in stock
Free shipping starting at 50.–

Product details

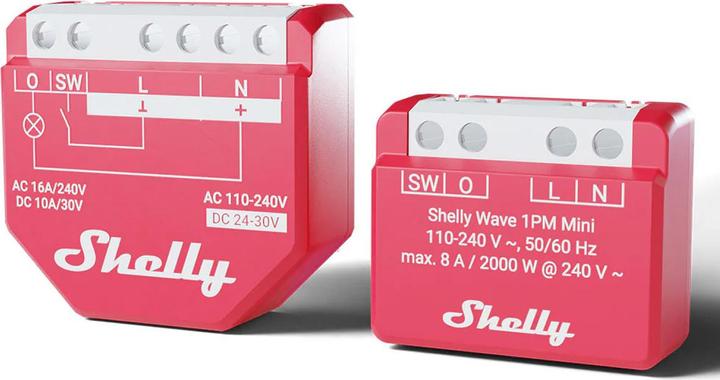

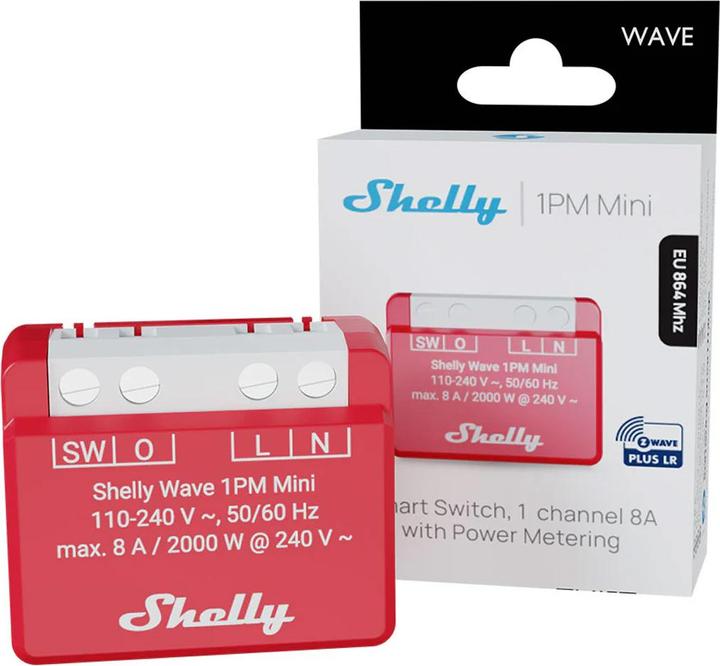

The Shelly Qubino Wave 1PM Mini is a compact, wireless switch actuator based on Z-Wave technology, designed for installation behind switches, sockets, or lamp outlets. With a 1-channel relay that supports a maximum load of 8 amps, this device allows for easy control and automation of lighting, sockets, and a variety of electrical devices. The integrated power measurement unit enables monitoring of energy consumption, promoting efficient use of electrical resources. The Shelly Qubino Wave 1PM Mini is compatible with an operating voltage of 110-240V AC and can be controlled via the Shelly Cloud or other Z-Wave platforms. Thanks to its low standby consumption of just 0.3 W and the latest Z-Wave 800 Series technology, it is a sustainable choice for modern smart home applications.

  • Integrated power measurement unit for monitoring energy consumption
  • Compatible with various smart home platforms
  • Extremely compact design for easy installation
  • Low standby consumption of just 0.3 W
  • Supports a wide range of applications, from lighting to heating control.

Key specifications

Actuator type
Switch actuator
Operating voltage
240 V
Mounting type
Flush-mounted
Smart Home Protocol
Z-wave
communicating
Wireless
Items per sales unit
1x

General information

Item number
62585336
Manufacturer
Shelly
Category
Actuator
Manufacturer no.
3800238071936
Release date
30.9.2025
Sales rank in Category Actuator
63 of 1414
External links

Colour

Colour
Red
Exact colour description
Red

Material

Material group
Plastic
Material
Plastic

Actuator properties

Actuator type
Switch actuator
Max. Switching capacity
2000 W
rated current
8 A
Operating voltage
240 V
Number of switching outputs
1x
Mounting type
Flush-mounted

Smart home features

Smart Home
Compatible
Smart Home Protocol
Z-wave
communicating
Wireless
Radio frequency
868400000 Hz
Requires Smart Home Hub
Yes

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
2.25 kg
Climate contribution
CHF 0.11

Scope of delivery

Items per sales unit
1x

Product dimensions

Length
16 mm
Width
35 mm
Height
29 mm
Weight
18 g

Package dimensions

Length
8 cm
Width
5 cm
Height
2.50 cm
Weight
34 g
