Shelly Wall switch 1
Only 1 piece in stock
Colour2
Product details

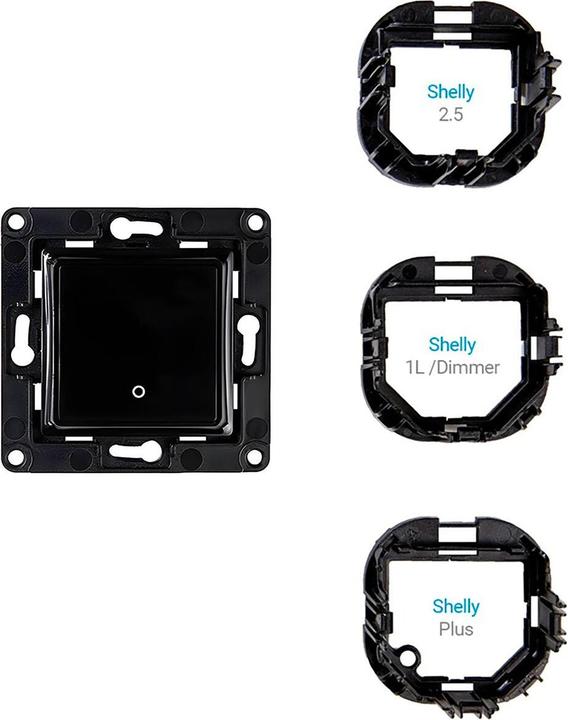

The Shelly Wall Switch WS1 in black is designed as a replacement for conventional light switches. The 1-button switch is supplied with extendable relay holders. Thanks to its compact dimensions and simple wiring, the Shelly Wall Switch for Smart Relay can be installed in any existing flush-mounted box or even in the smallest of rooms. Relay holder 1 - Shelly 1 / Shelly 1PM. Relay holder 2 - Shelly Plus 1 / Shelly Plus 1PM. Relay holder 3 - Shelly 1L / Shelly Dimmer. Due to the extremely compact design, installation can be realised even where space is limited, which is particularly advantageous in old flats and houses. Scope of delivery: 1 x Shelly Switch WS1 black. 3 x relay holder. The Wall Switch frame WF1 is not included in the scope of delivery and can be purchased as an option.
Application range | Indoor |
Exact colour description | Black |
Light switch + socket Type | Pressure switch |
Number of switches | 1 x |
Mounting type | Flush-mounted |
Item number | 24570600 |
Manufacturer | Shelly |
Category | Light switches + Plug sockets |
Manufacturer no. | WS1 black |
Release date | 15.5.2023 |
Colour | Black |
Exact colour description | Black |
Material group | Plastic |
Light switch + socket Type | Pressure switch |
Mounting type | Flush-mounted |
Application range | Indoor |
Light switch type | Switch |
Number of switches | 1 x |
Additional properties | Switch |
Protection type (IP code) | IP20 |
Nominal voltage | 230 V |
Area of use | Inside |
Smart Home | Compatible |
Requires Smart Home Hub | No |
Smart home ecosystem | Amazon Alexa, Google Home |
Communication standard | Google Assistant |
Transmission type | Wi-Fi |
Control type | Wall switch |
Configuration effort | Manual configuration |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Width | 7 cm |
Height | 8 cm |
Weight | 0.05 kg |
Stack depth | 12 mm |
Length | 19.90 cm |
Width | 11.20 cm |
Height | 4.50 cm |
Weight | 50 g |
