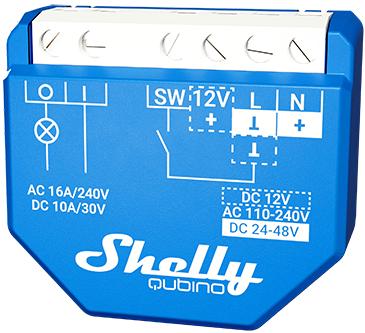

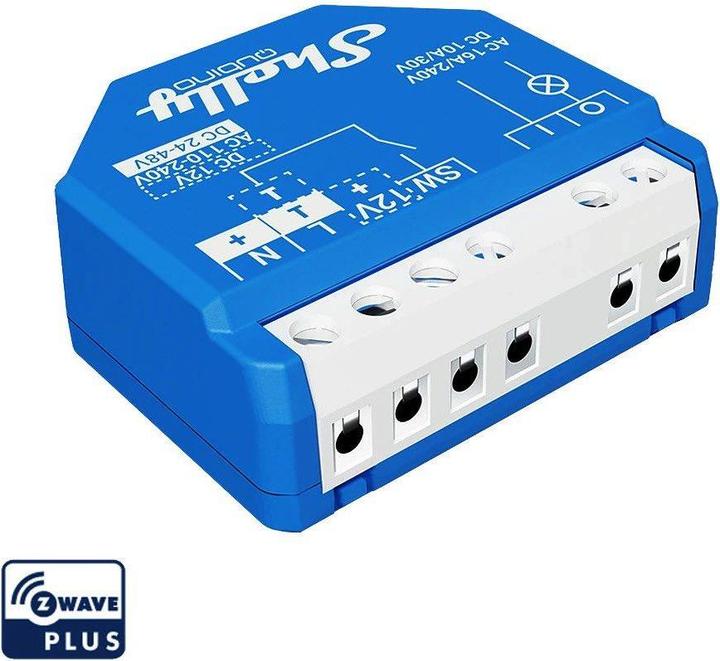

The Shelly Qubino Wave 1 Module is a Z-Wave 800 in-wall switch with a potential-free output. The module is designed for controlling devices such as electric locks, garage doors, entrance gates, irrigation systems, sockets, and lighting. With a maximum load capacity of 16A, the module provides sufficient power for various applications. The module can be controlled wirelessly via Z-Wave or through a wall switch.
The module can operate with a voltage of 110-240V AC, 24-48V DC, or 12V DC, offering flexibility in power supply. Additionally, the output is potential-free, meaning the input voltage can differ from that of the device being switched. This allows for compatibility with various electrical devices. Furthermore, the module is equipped with overheating protection.
Actuator type | Switch actuator |
communicating | Wireless |
Items per sales unit | 1 x |
Smart Home Systems | Amazon Alexa, Google Assistant, Samsung SmartThings |
Smart Home Protocol | Z-wave |
Mounting type | Flush-mounted |
Item number | 36919309 |
Manufacturer | Shelly |
Category | Actuator |
Manufacturer no. | Shelly_W_1 |
Release date | 12.9.2023 |
Sales rank in Category Actuator | 113 of 1478 |
Colour | Blue |
Exact colour description | Blue |
Material group | Plastic |
Material | Plastic |
Actuator type | Switch actuator |
Max. Switching capacity | 3500 W |
rated current | 0.30 A |
Operating voltage | 230 V |
Number of switching outputs | 1 x |
Mounting type | Flush-mounted |
Smart Home | Compatible |
Smart Home Systems | Amazon Alexa, Google Assistant, Samsung SmartThings |
Smart Home Protocol | Z-wave |
communicating | Wireless |
Radio frequency | 868400000 Hz |
Requires Smart Home Hub | No |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 x |
Length | 16 mm |
Width | 42 mm |
Height | 37 mm |
Weight | 26 g |
Length | 6.80 cm |
Width | 6.80 cm |
Height | 2.70 cm |
Weight | 49 g |
