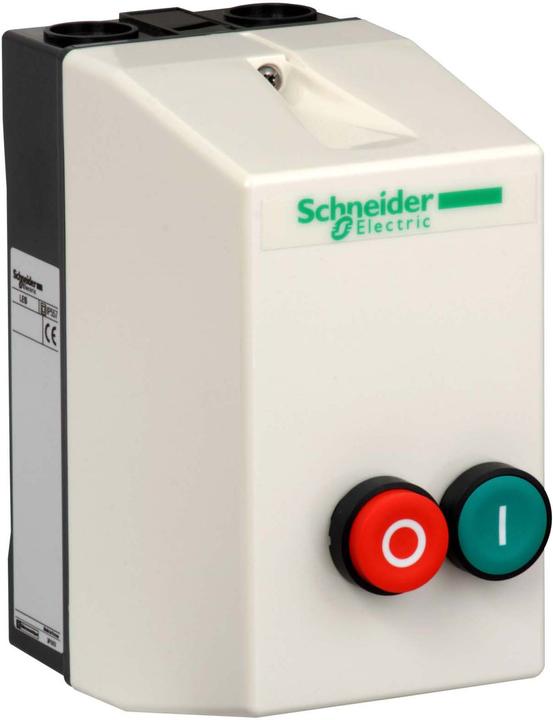

Schneider LE1D09N7

Schneider Electric Motor starters LE1D09N7 Manufacturer :Schneider Electric Designation :Motor starter 4kW Type :LE1D09N7 Type of motor starter :Direct-on-line (DOL) With short-circuit release :no Rated control supply voltage Us at AC 50 Hz :415 V Rated control supply voltage Us at AC 60 Hz :415 V Voltage type for actuation :AC Rated operating power at AC-3, 230 V, 3-phase :2.2 kW Rated operating power at AC-3, 400 V :4 kW Rated operating power, 460 V, 60 Hz, 3-phase :4 kW Rated operating power, 575 V, 60 Hz, 3-phase :5.5 kW Rated operating current Ie :9 A Rated operating current at AC-3, 400 V :9 A Ambient temperature, upper limit without restrictions :40 °C Type of connection main circuit :Screw connection Type of electrical connection for auxiliary and control circuit :Screw connection Mounting rail mounting possible :no With transformer :no Number of control points :2 Suitable for EMERGENCY STOP :no External reset possible :yes With fuse :no Protection class (IP) :IP65 Supported protocol for TCP/IP :no Supported protocol for PROFIBUS :no Supported protocol for CAN :no Supported protocol for INTERBUS :no Supported protocol for ASI :no Supported protocol for MODBUS :no Supported protocol for Data-Highway :no Supported protocol for DeviceNet :no Supported protocol for SUCONET :no Supported protocol for LON :no Supported protocol for PROFINET IO :no Supported protocol for PROFINET CBA :no Supported protocol for SERCOS :no Supported protocol for Foundation Fieldbus :no Supported protocol for EtherNet/IP :no Supported protocol for AS-Interface Safety at Work :no Supported protocol for DeviceNet Safety :no Supported protocol for INTERBUS-Safety :no Supported protocol for PROFIsafe :no Supported protocol for SafetyBUS p :no Supported protocol for other bus systems :no Width :88 mm Height :166 mm Depth :128.5 mm Schneider Electric motor starter LE1D09N7: further details Direct starter with magnetic release up to 15 kWThe combination of TeSys GV2 motor-protective circuit-breaker with TeSys D contactor guarantees maximum reliability, compact designs and the simplest selection. , EAN: 3389110570809.
