Schneider LC3D09AP7

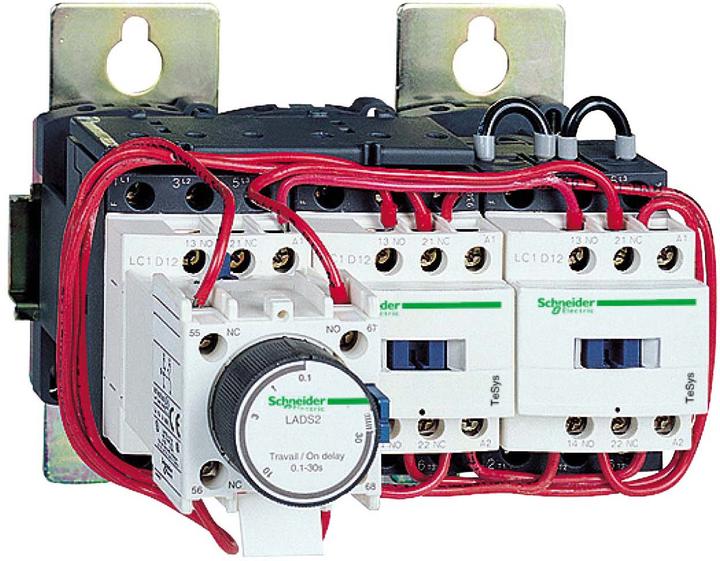

Schneider Electric star-delta starter LC3D09AP7

Manufacturer: Schneider Electric
Designation: Star-delta starter 7.5 kW 230V 50/60Hz
Type: LC3D09AP7
Function: Star-delta contactor
Rated control supply voltage Us at AC 50 Hz: 230 V
Rated control supply voltage Us at AC 60 Hz: 230 V
Voltage type for actuation: AC
Rated operating current Ie at AC-3, 400 V: 9 A
Rated operating power at AC-3, 400 V: 7.5 kW
Number of NO contacts as main contacts: 3
Type of electrical connection for auxiliary and control circuit: Screw connection
Type of connection for main circuit: Screw connection
Protection class (IP): IP20
Protection class (NEMA): Other
Rail mounting possible: No

Schneider Electric star-delta starter LC3D09AP7: more details

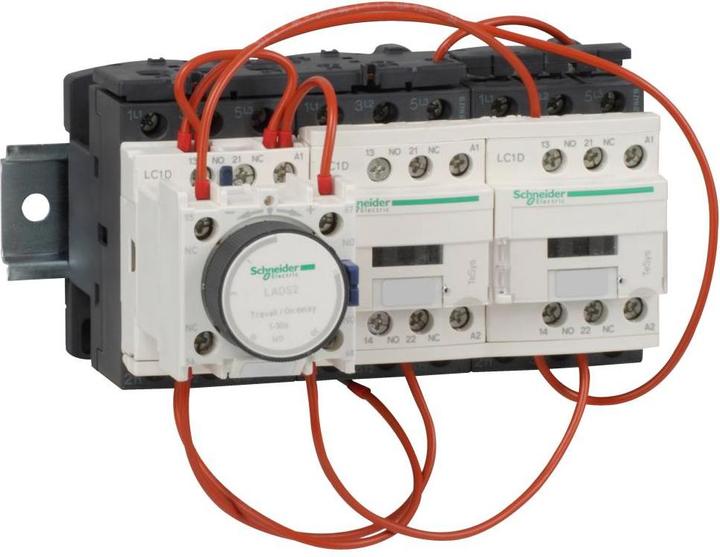

Pre-assembled TeSys D-star-delta starter for motor applications up to 7.5 kW at 400 V. Panel-mounted starter, open version, consisting of 3 contactors with 230 V 50/60 Hz AC coils, 1 NC built-in auxiliary contact on star, and a time-delayed auxiliary switch block. Equipped with pre-wired star-delta current connections and mechanical interlock. The maximum operating rate is 30 starts per hour and the maximum start time is 30 seconds. Protection is strongly recommended when a thermal overload relay is added (to be ordered separately).
