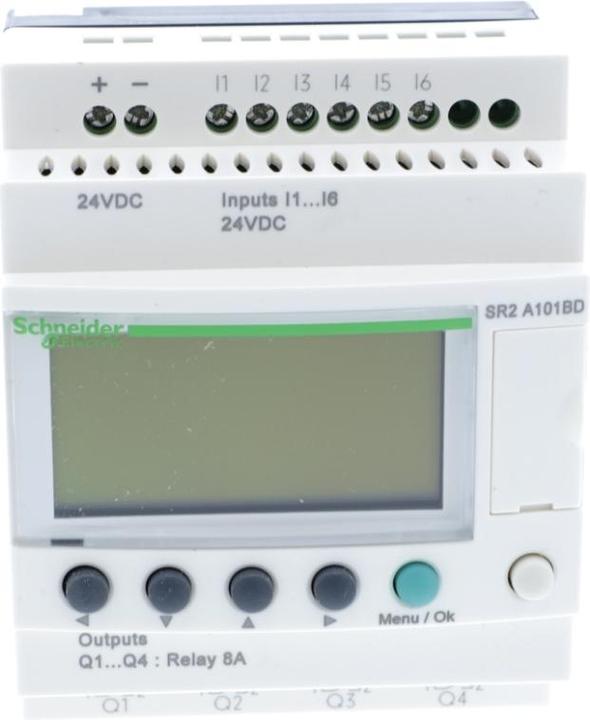

Schneider Electric Zelio process module

Series: Zelio Logic
Supply Voltage: 24 VDC
Output Type: Relay
Number of Outputs: 4
Input Type: Discrete
Number of Inputs: 6
Mounting Type: DIN Rail
Display Included: Yes
Connection Type: Screw
Programmable Interface: Computer, Operator Device
Module Type: Logic Control Module
Output Current: 1.5 A

Zelio Logic Smart Relays – compact. Zelio Logic Smart Relays are designed for use in small automated systems and are utilized in industrial and commercial applications. The relays come with 10 or 26 I/O depending on the model and can have up to 40 extended I/O. Programming and Software: Easy programming can be done independently using the buttons on the front of the relay or on a PC using "Zelio Soft" software. Programming via a PC can be done using either LADDER language or Function Block Diagram (FBD) language. Memory: The Zelio Logic Smart Relays feature memory buffering that allows programs to be copied to other Smart Relays. The memory enables the storage of a backup copy of the program before product replacement, and for relays without a display or buttons, the copy program is automatically transferred upon power-up. LCD display with backlighting, DIN rail or panel mounting, includes real-time clock, 4 analog output channels, 10 ms cycle time, 10 years buffering (EEPROM memory), screw connection terminals, protection class IP20.
