Schneider Electric SE KSA630ABD4 End feed box 630A right

Ratings
Delivered between Sat, 6.9. and Sat, 27.9.
free shipping

Product details

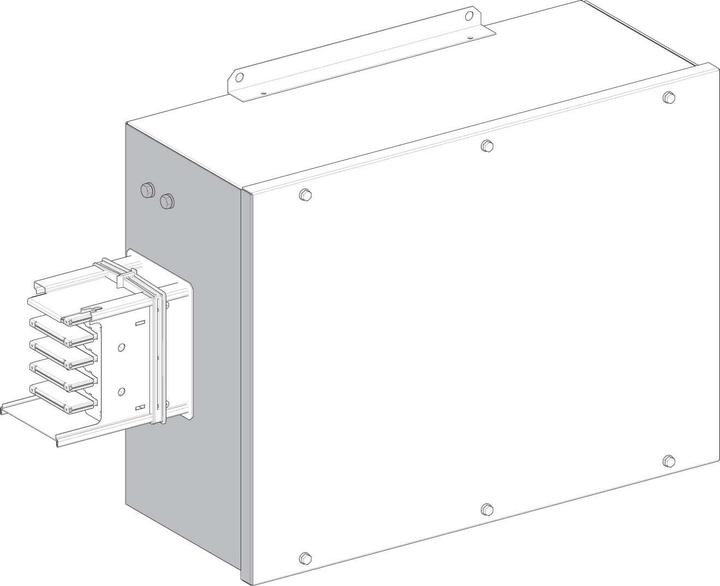

Schneider Electric End Feed Box KSA630ABD4

Manufacturer: Schneider Electric
Designation: End Feed Box 630A
Type: KSA630ABD4
Rated current at AC 50 Hz: 630 A
Feed point: End
Design: Single
Number of poles: 5
Rated voltage at AC 50 Hz: 230..690 V
Color: white
RAL number: 9001
Protection class (IP): IP55
Length: 753 mm
Width: 288 mm
Height: 500 mm

The Schneider Electric End Feed Box KSA630ABD4 is a Canalis feed unit for KSA and is compatible with the flange plate FL21. The rated operating voltage ranges from 230 VAC to 690 VAC. The rated operating current is 500 A and 630 A. The busbar material of the feed unit is aluminum with a white surface treatment according to RAL 9001. The busbar assembly is done by screws with a right mounting position, and the connection is made through cable lug terminals. The design offers a branching option. It provides IP55 protection, which complies with the IEC 60529 standard. IK08 is compliant with IEC 62262. It is compliant with both IEC 60439-2 and IEC 61439-6 and meets the requirements of Green Premium (RoHS/REACH).

Key specifications

Protection type (IP code)
IP55
Length
753 mm
Width
288 mm
Height
500 mm
Item number
32107860

General information

Manufacturer
Schneider Electric
Category
Wiring closet technology
Manufacturer no.
KSA630ABD4
Release date
16.11.2022

Colour

Colour
White
Exact colour description
White

Material

Material group
Metal
Material
Aluminium

Distribution cabinet technology Features

Nominal current
630 A
Protection type (IP code)
IP55
Nominal voltage
690 V
number of poles
5
input voltage
690 V

Origin

Country of origin
France

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer Schneider Electric fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Length
753 mm
Width
288 mm
Height
500 mm
