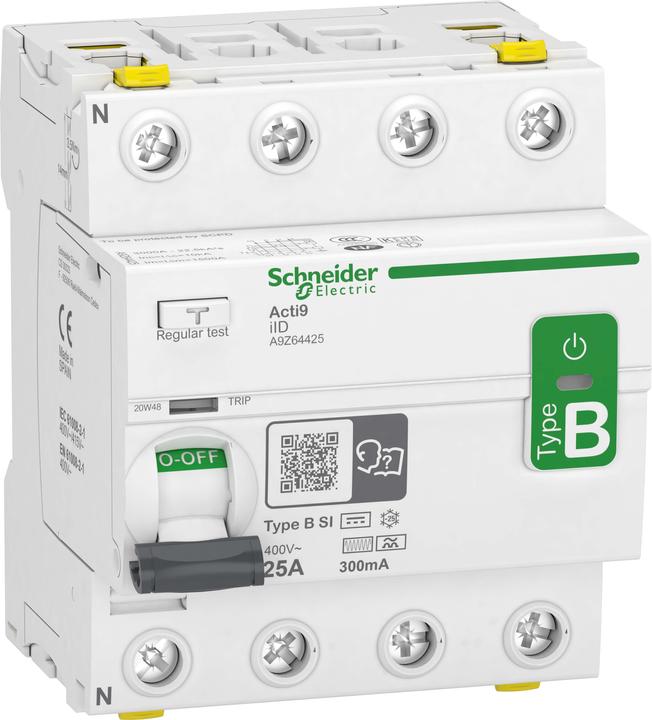

Schneider Electric Residual current circuit breaker universal current sensitive iID, 4P, 25A, type B-SI, 300mA

Ratings
Delivered between Thu, 7.8. and Thu, 28.8.

Product details

The All Current Sensitive Residual Current Circuit Breaker iID from Schneider Electric is a highly advanced safety device designed for use in electrical installations. With a rated current of 25A and a rated residual current of 300mA, this 4-pole Type B-SI device provides protection against fault currents that can be caused by frequency converters, inverters, and uninterruptible power supplies. The integrated SI technology ensures improved resistance to electrical disturbances. The switch is designed for an operating voltage of up to 400V AC at 50Hz and meets relevant standards to ensure the highest safety standards. Installation is straightforward on a DIN rail, and the design allows for easy removal of the device when phase rails are installed. With features such as the mechanical fault indication (VisiTrip) and the safe contact indication (VisiSafe), reliable monitoring and maintenance of the device are ensured.

  • Mechanical fault indication (VisiTrip) to show tripping due to residual current
  • Safe contact indication (VisiSafe) for voltage-free status on the outgoing side
  • Test button for regular functional testing
  • Double connection terminals for dual-sided connection of cables or phase rails
  • Additional snap-on auxiliary modules for extended functions.

Key specifications

Circuit breaker type
Fault current circuit breaker
Length
44 mm
Width
4 mm
mounting style
Top-hat rail
number of poles
4
Item number
32024922

General information

Manufacturer
Schneider Electric
Category
Residual-current device
Manufacturer no.
A9Z64425
Release date
24.10.2022

Colour

Exact colour description
RAL 9003

Circuit Breaker Features

Circuit breaker type
Fault current circuit breaker
mounting style
Top-hat rail
number of poles
4
Tripping characteristic
B
Rated current
25 A
voltage type
AC
Rated insulation voltage Ui
500 V
Protection type (IP code)
IP20

Origin

Country of origin
Spain

Sustainability

Manufacturer commitment
RE100, SBTi

Voluntary climate contribution

Manufacturer compensation
According to RE100, the manufacturer Schneider Electric fully compensates for its energy consumption, leading to a reduction in emissions.
CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 Piece

Product dimensions

Length
44 mm
Width
4 mm

30-day right of return if unopened
24 Months Warranty (Bring-in)
