Product details

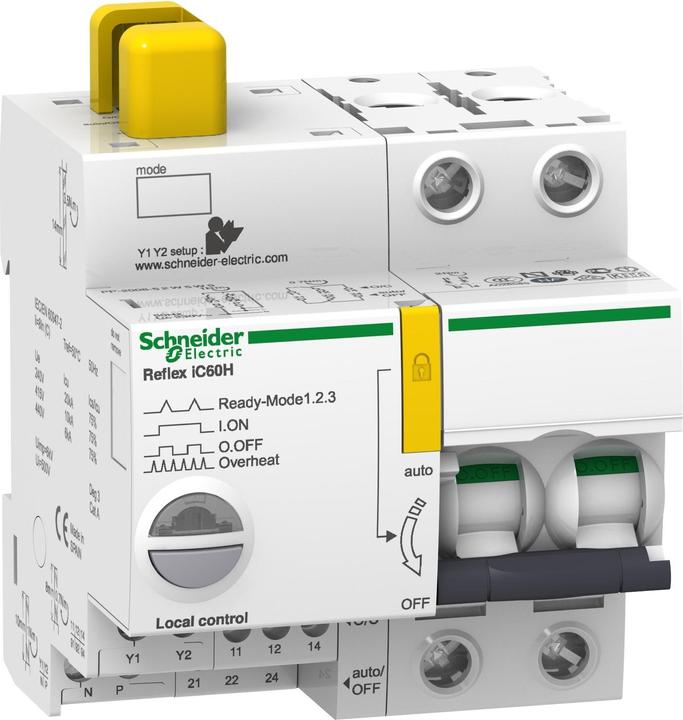

Remote-controlled circuit breaker Acti 9 Reflex iC60H, with a breaking capacity of 30 kA at 220-240 V AC (EN/IEC 60947-2) and 15 kA at 380-415 V AC (EN/IEC 60947-2). 2-pole, rated current 10 A, C-characteristic, Ti24 interface, insulation voltage (Ui) 500 V. Remote switching via pulse and/or continuous signal according to one of the three adjustable operating modes set by the user. Protects circuits against short-circuit currents. Protects circuits against overload currents. Disconnects circuits. Equipped with a Ti24 connection for direct integration with PLCs or decentralized I/O. Bistable switching mechanism requires no holding power. Green indicator on the switch ensures that the contacts are open, providing safe operation on the outgoing side. Jump switching ensures low-wear contact operation. Operating status indicator light. Control through three adjustable operating modes using the push button on the device front. Protection class IP20. To control inputs Y1 and Y2 using 24/48 V AC/DC, the coupling relay iMDU can be used. Color shade RAL 9003. The remote-controlled circuit breaker Reflex iC60H complies with the following standards IEC/EN 60947-2.
